Description
General part information

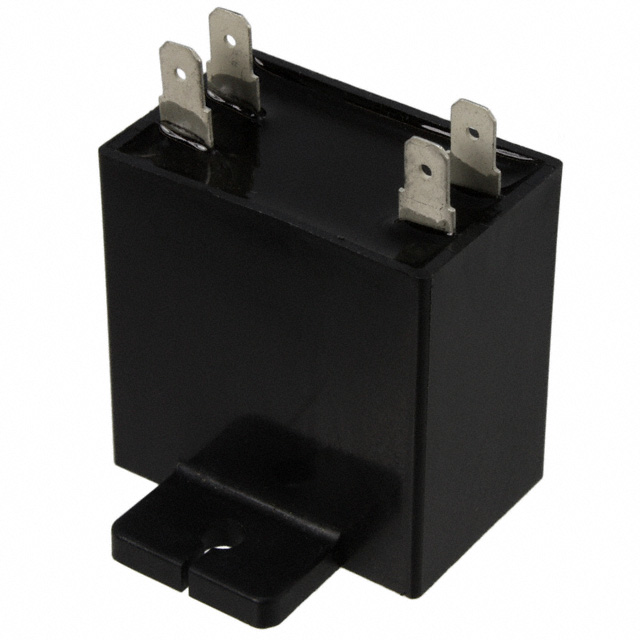

EEC2G705HQA407
7 µF Film Capacitor 400V Polypropylene (PP), Metallized Rectangular Box
Technical Specifications
Parameters and characteristics for this part
| Specification | EEC2G705HQA407 |
|---|---|
| Applications | Motor Run |
| Capacitance | 7 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 1.496 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Rectangular Box |
| Size / Dimension Length | 1.457 in |
| Size / Dimension Width | 0.945 in |
| Termination | Disconnect, Quick Connect |
| Tolerance (Negative) | 5 % |
| Tolerance (Positive) | 10 % |
| Voltage Rating - AC | 400 Vpk |
