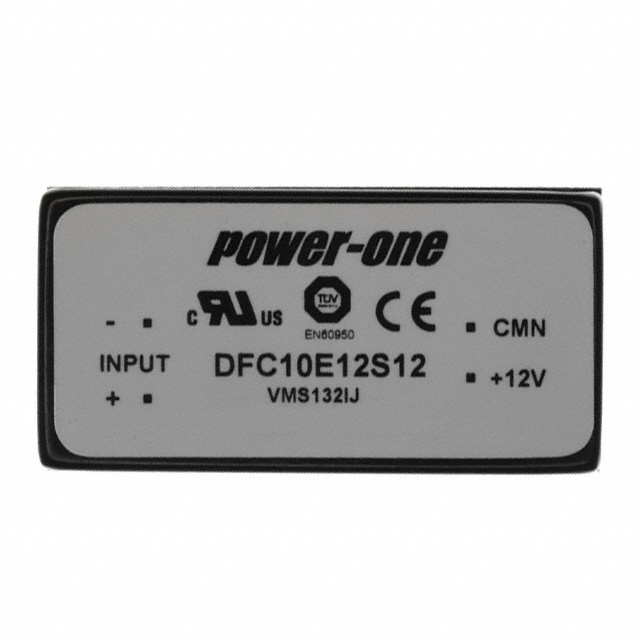

DFC10E12S12
ObsoleteBel Fuse Inc.
DC DC CONVERTER 12V 10W
DFC10E12S12
ObsoleteBel Fuse Inc.
DC DC CONVERTER 12V 10W
Description
General part information
DFC10E12S12
Isolated Module DC DC Converter 1 Output 12V 900mA 9V - 18V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DFC10E12S12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 900 mA |
| Efficiency | 83 % |
| Features | SCP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | 5-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.42 in |
| Size / Dimension Length | 2.02 in |
| Size / Dimension Width | 1.02 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 18 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 700 V |
| Voltage - Output 1 | 12 V |
