2204422-3

2204422-3

Active
TE Connectivity AMP Connectors

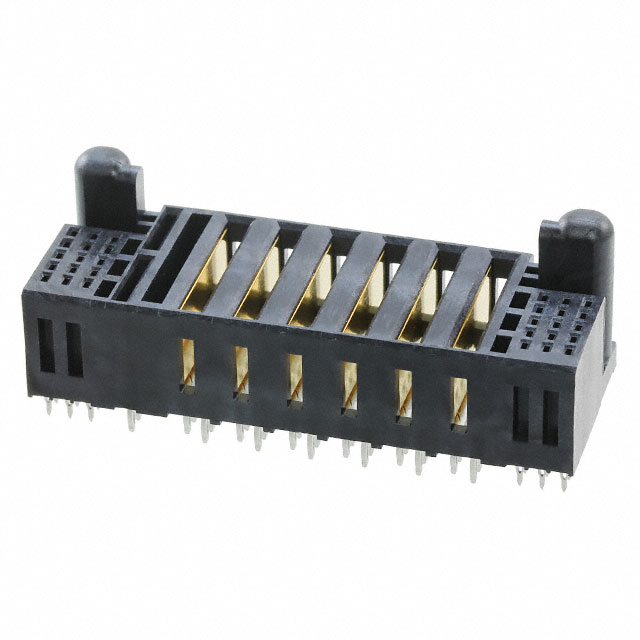

MULTI-BEAM HD VER.REC.15S+6P+2LP+15S

Find alt
2204422-3

2204422-3

Active
TE Connectivity AMP Connectors

MULTI-BEAM HD VER.REC.15S+6P+2LP+15S

Find alt

Description

General part information

MULTI-BEAM HD Series

PCB Mount Receptacle, Vertical, Board-to-Board, 38 Position, 2 mm / 5 mm [.079 in / .196 in] Centerline, Fully Shrouded, Gold (Au), MULTI-BEAM HD

Technical Specifications

Parameters and characteristics for this part

Specification2204422-3
ColorBlack
Connector StyleMulti-Beam
Connector TypeReceptacle, Blade Sockets, Female Sockets
Contact FinishGold-Palladium, Gold
FeaturesBoard Guide
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions38
Number of Positions LoadedAll
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Power Contacts (Typical)8
Signal Contacts (Typical)30
TerminationPress-Fit
