2441524-1
ActiveTE Connectivity AMP Connectors

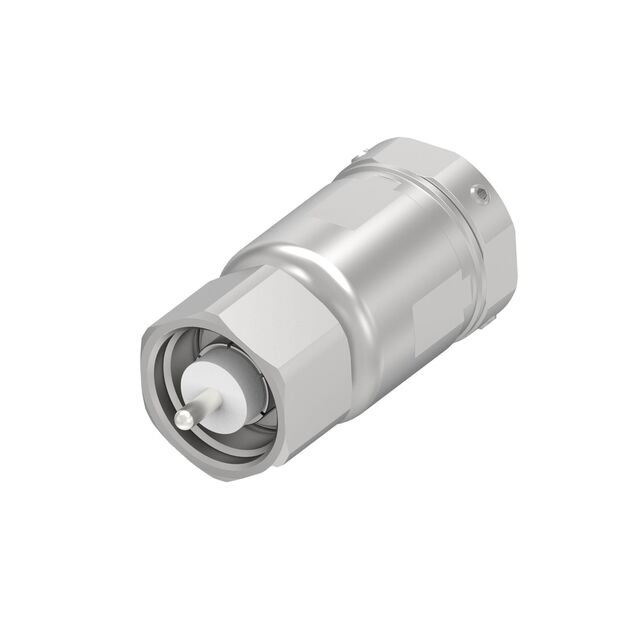

LC M ST CRIMP FOR HPL-1200 CABLE, 50 OHM
2441524-1
ActiveTE Connectivity AMP Connectors
LC M ST CRIMP FOR HPL-1200 CABLE, 50 OHM
Description
General part information
2441524-1
Plug, 50 ohm, Screw, 0 – 1 GHz, Cable-to-Cable, 1 Position, Wire & Cable, Cable Mount (Free-Hanging), -40 – 125 °C [-40 – 257 °F], Clamp, Straight
Technical Specifications
Parameters and characteristics for this part
| Specification | 2441524-1 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | HPL-1200 |
| Center Contact Material | Beryllium Copper, Brass |
| Center Contact Plating | Silver |
| Connector Style | LC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 1 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Clamp |
| Voltage Rating | 2330 V |
