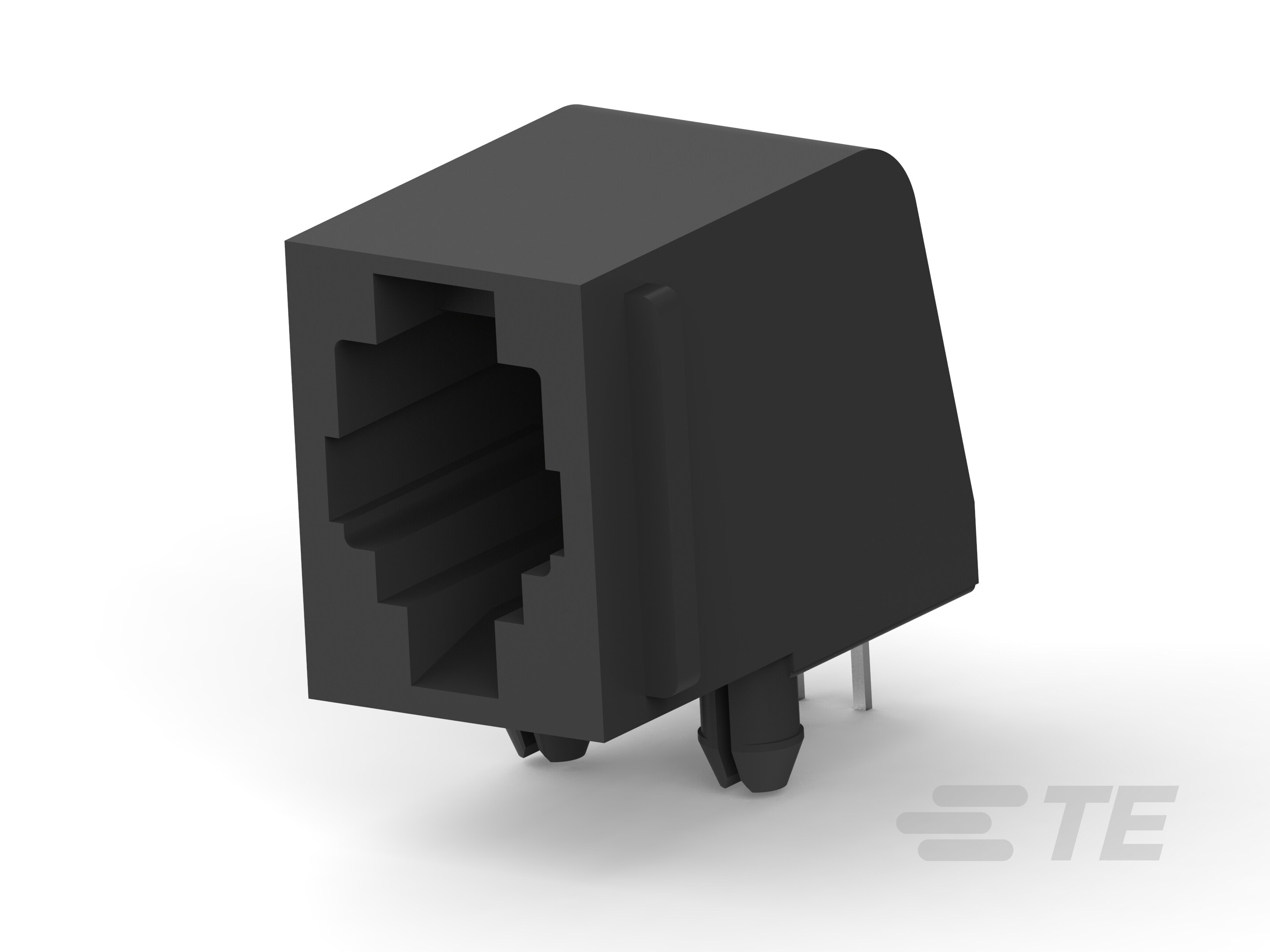

MJ,R/A,4P,PNL STOP,TRAY-5520249-2

5520249-2

Active
TE Connectivity AMP Connectors

CONN MOD JACK 4P4C R/A UNSHLD

Find alt
MJ,R/A,4P,PNL STOP,TRAY-5520249-2

5520249-2

Active
TE Connectivity AMP Connectors

CONN MOD JACK 4P4C R/A UNSHLD

Find alt

Description

General part information

5520249-2

Low Profile, RJ Type Jacks & Plugs, Jack, Right Angle, Cat 3, Through Hole - Solder, Side Entry, Gold (Au), Polyester, RJ22 Connectors

Technical Specifications

Parameters and characteristics for this part

Specification5520249-2
Connector TypeJack, RJ10, RJ22, RJ9
Contact FinishGold
Contact MaterialPhosphor Bronze
FeaturesBoard Lock, Panel Stops
LED ColorDoes Not Contain LED
Mounting TypeThrough Hole
Number of Contacts4
Number of Ports1
Number of Positions4
Number of Rows1
Orientation Angle90 °
Orientation DirectionRight
RatingsCat3
ShieldingUnshielded
Tab DirectionDown
TerminationSolder
