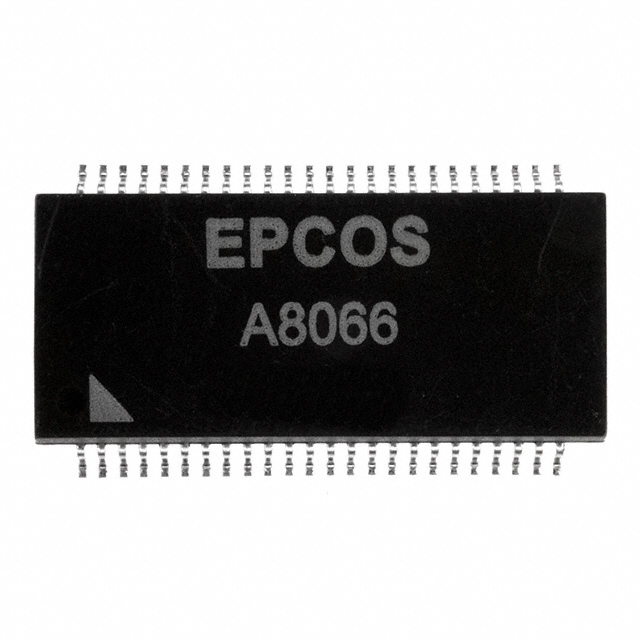

B78476A8066A003
ActiveEPCOS - TDK Electronics
PULSE XFMR 1CT:1CT 350UH
B78476A8066A003
ActiveEPCOS - TDK Electronics
PULSE XFMR 1CT:1CT 350UH
Description
General part information
B78476A8066A003
350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B78476A8066A003 |
|---|---|
| Height - Seated (Max) | 0.285 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 1.095 in |
| Size / Dimension Width | 0.48 in |
| Transformer Type | LAN 10, 1000 Base-T, 100 |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
