Description
General part information

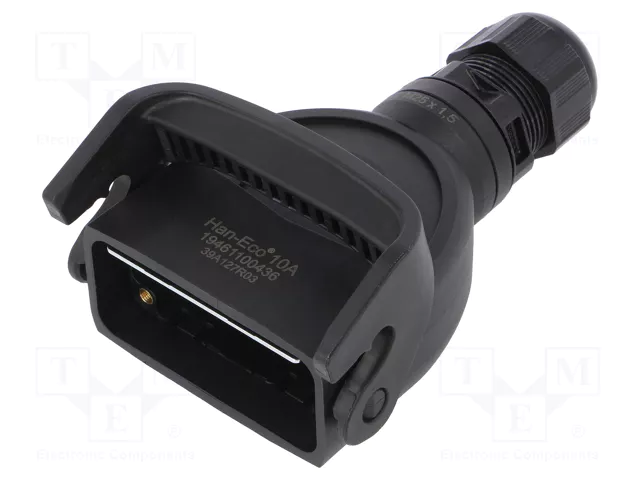

19461100436
HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 10A
Technical Specifications
Parameters and characteristics for this part
| Specification | 19461100436 |
|---|---|
| Connector Type | Hood - Coupling |
| Features | Cable to Cable, Cable |
| Housing Color | Black |
| Housing Material | Nylon, Polyamide, Glass Filled, PA |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (1) on Hood Top |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | 10A |
| Style | Top or Bottom Entry |
| Thread Size | M25 |
