P006-006-2
ActiveMAINS POWER CORD, NEMA 5-15P, IEC 60320 C13, 1.8 M, 10 A, 125 VAC, BLACK
P006-006-2
ActiveMAINS POWER CORD, NEMA 5-15P, IEC 60320 C13, 1.8 M, 10 A, 125 VAC, BLACK
Description
General part information
P006-006-2

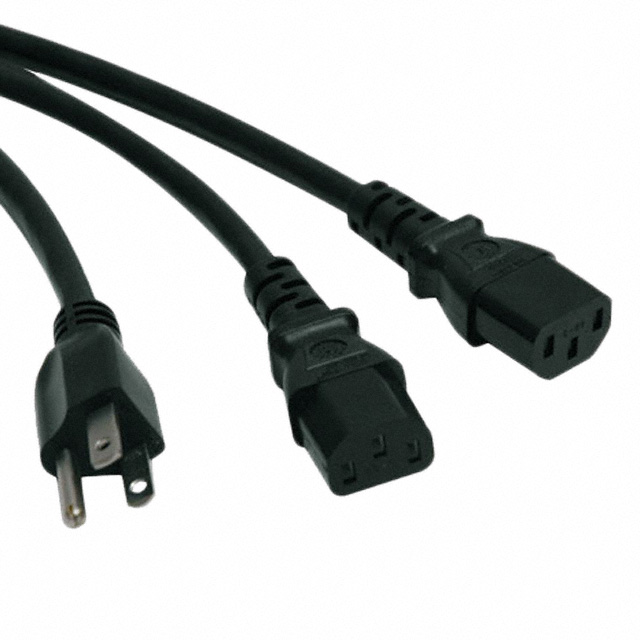

The P006-006-2 is a 1.8m SJT universal Y-splitter Power Extension Cord. It allows you to connect two devices with C14 connections, such as computers, to one power outlet. It cuts down on cabling, as well as frees up space on UPSs, surge protectors. Main trunk cable measures 47-inch from 5-15P plug to the splitter housing, 3-inch housing and 22-inch each on the two C13 legs.
Technical Specifications
Parameters and characteristics for this part
| Specification | P006-006-2 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C13 |
| 2nd Connector Count | 2 pcs |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 10 A |
| Features | Y-Adapter |
| Length | 6 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 18 AWG |
