LCCA31047-FT3
ActivePasternack
PLENUM N MALE TO N FEMALE BULKHE
LCCA31047-FT3
ActivePasternack
PLENUM N MALE TO N FEMALE BULKHE
Description
General part information
LCCA31047-FT3

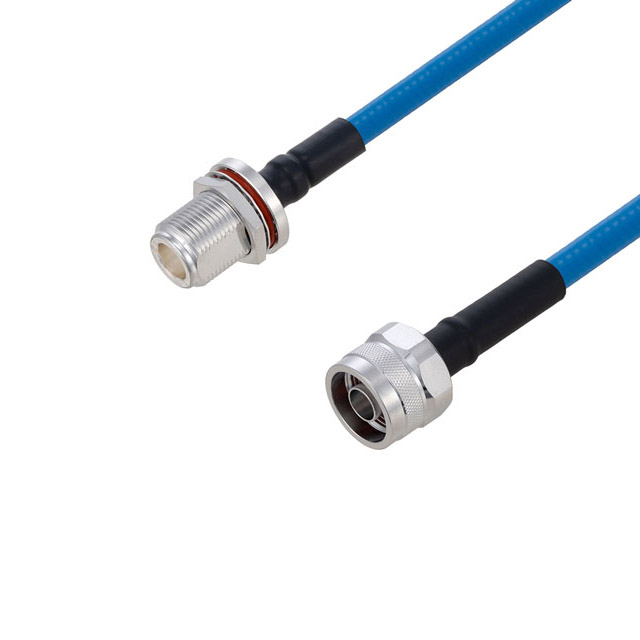

Cable Assembly Coaxial N-Type to N-Type SPP-250LLPL 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31047-FT3 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 36 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
