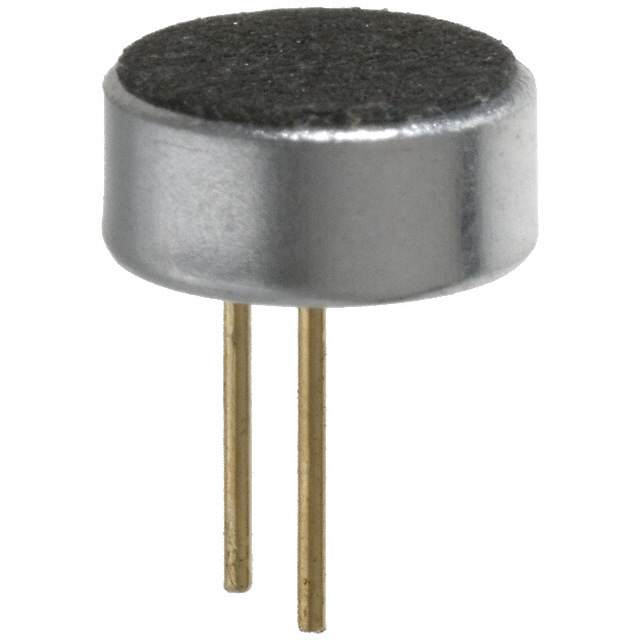

POM-3046P-R
ActivePUI Audio, Inc.
MIC COND ANLG OMNI -46DB 0.236"D
POM-3046P-R
ActivePUI Audio, Inc.
MIC COND ANLG OMNI -46DB 0.236"D
Description
General part information
POM-3046P-R
30 Hz ~ 15 kHz Analog Microphone Electret Condenser 2 V ~ 10 V Omnidirectional (-46dB ±3dB) PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | POM-3046P-R |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 15 kHz |
| Frequency Range (Min) | 30 Hz |
| Height (Max) | 0.126 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity (Nominal) | -46 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Circular |
| Size / Dimension Diameter | 0.236 in |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage - Rated | 2 VAC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 2 V |
