1-2158000-3
ActiveTE Connectivity AMP Connectors
RZH3-1C4-D009
1-2158000-3
ActiveTE Connectivity AMP Connectors
RZH3-1C4-D009
Description
General part information
1-2158000-3

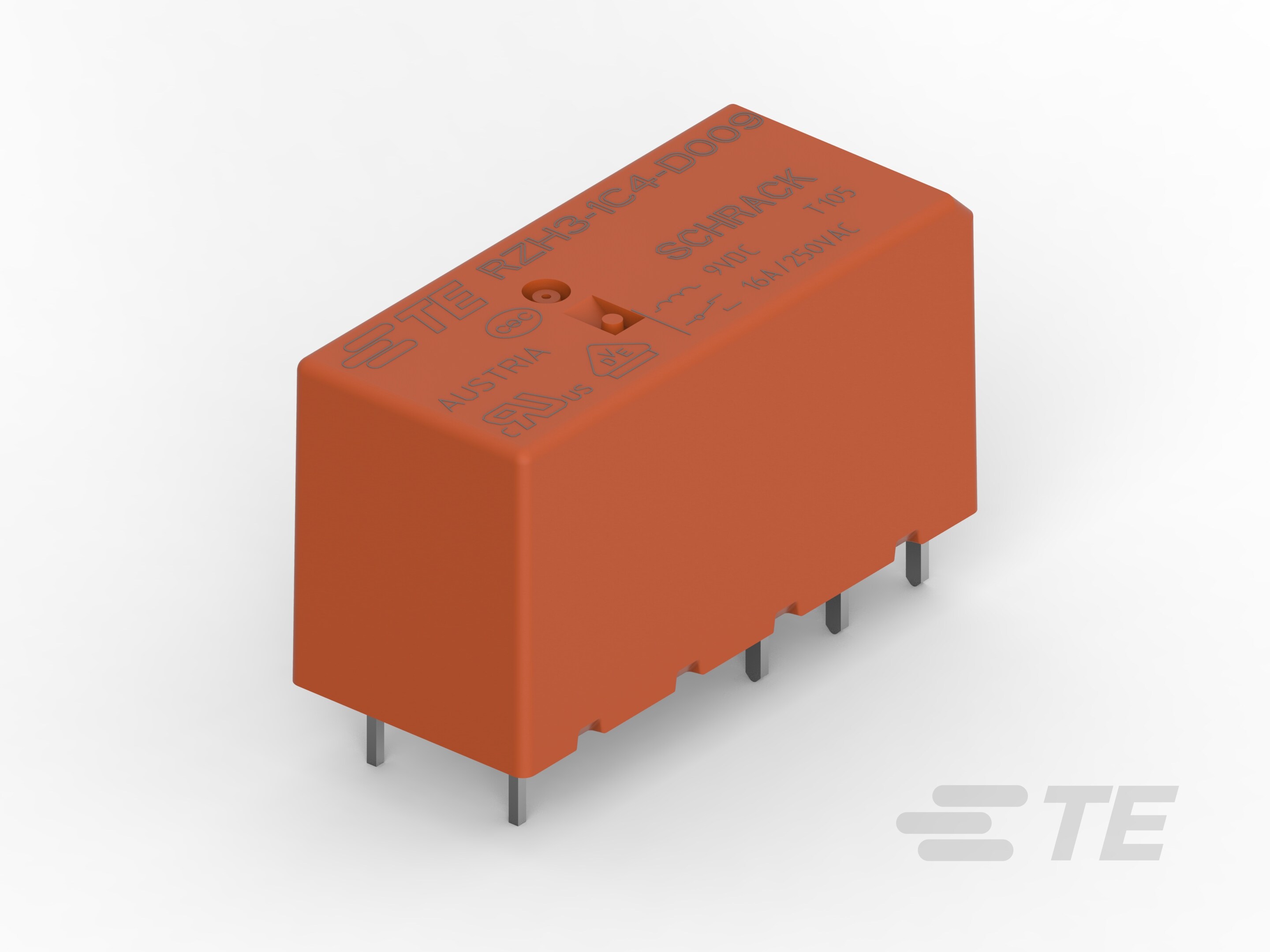

General Purpose Power Relay, DC, Monostable, 1 Form C SPDT-CO, 16 A Contact Rating, 9 VDC Coil Voltage, 250 VAC Contact Voltage, .4 W Coil Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2158000-3 |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 45 mA |
| Coil Insulation | Class F |
| Coil Type | Non Latching |
| Coil Voltage | 9 VDC |
| Contact Form | C, 1, SPDT, Form |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching (Apparent Power) | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.3 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 8 ms |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage AC (Max) | 400 VAC |
| Termination Style | PC Pin |
