97-3106A-20-8P(621)

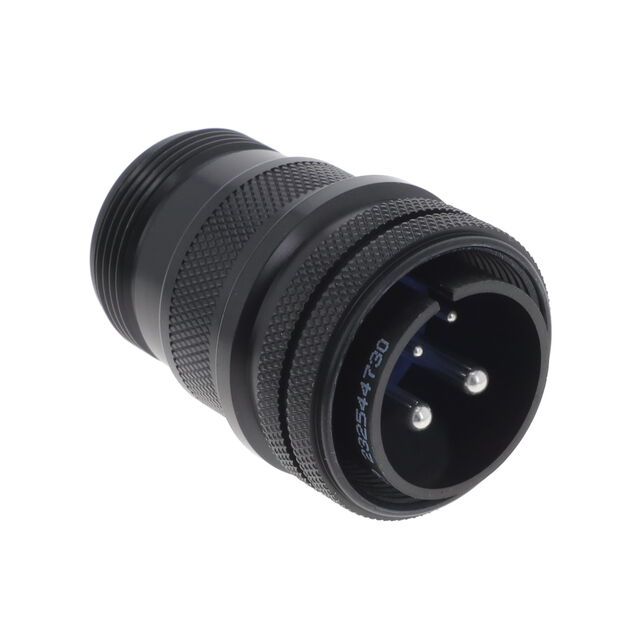

6 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 97-3106A-20-8P(621) |
|---|---|
| Applications | Automotive, Industrial |
| Backshell Material | Aluminum Alloy |
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating Options | 13A, 46A |
| Fastening Type | Threaded |
| Features | Backshell |
| Insert Material | Diallyl Phthalate, DAP |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Plating | Black Zinc Alloy |
| Primary Material | Metal |
| Shell Finish | Black Zinc Alloy |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert Length | 20 mm |
| Shell Size - Insert Width | 8 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 200 VAC |
| Voltage Rating (DC) | 250 VDC |
