F182K53S3NP63K7R
ActiveVishay Dale
F 2KV 1800PF ± 10% S3N BULK E3
F182K53S3NP63K7R
ActiveVishay Dale
F 2KV 1800PF ± 10% S3N BULK E3
Description
General part information
F182K53S3NP63K7R

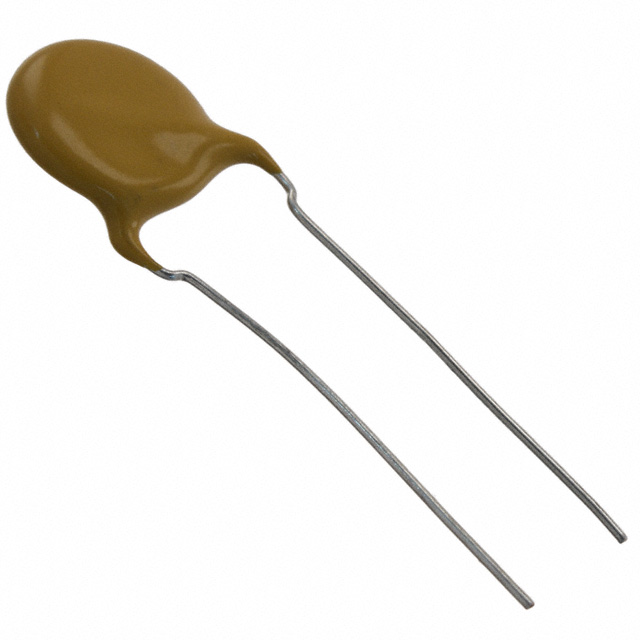

1800 pF ±10% 2000V (2kV) Ceramic Capacitor S3N Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | F182K53S3NP63K7R |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 1800 pF |
| Features | High Voltage |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.531 in |
| Temperature Coefficient | S3N |
| Tolerance | 10 % |
| Voltage - Rated | 2000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
