N846D-05M-16AMG
ActiveEaton Tripp Lite
FIBER OPTIC CBL MTP-MTP MULT 5M
N846D-05M-16AMG
ActiveEaton Tripp Lite
FIBER OPTIC CBL MTP-MTP MULT 5M
Description
General part information
N846D-05M-16AMG

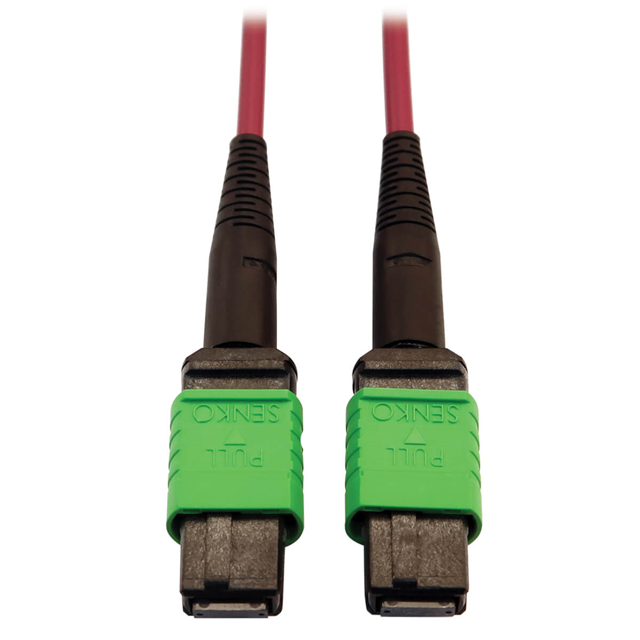

Cable Fiber Optic MTP To MTP 50/125 16.4' (5.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N846D-05M-16AMG |
|---|---|
| 1st Connector | MTP |
| 2nd Connector | MTP |
| Bend Radius | 10 mm |
| Color - Cable | Magenta |
| Color - Connectors | Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.6 dB |
| Length - Overall | 16.4 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | OFNP |
| Type | OM4, Multimode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
