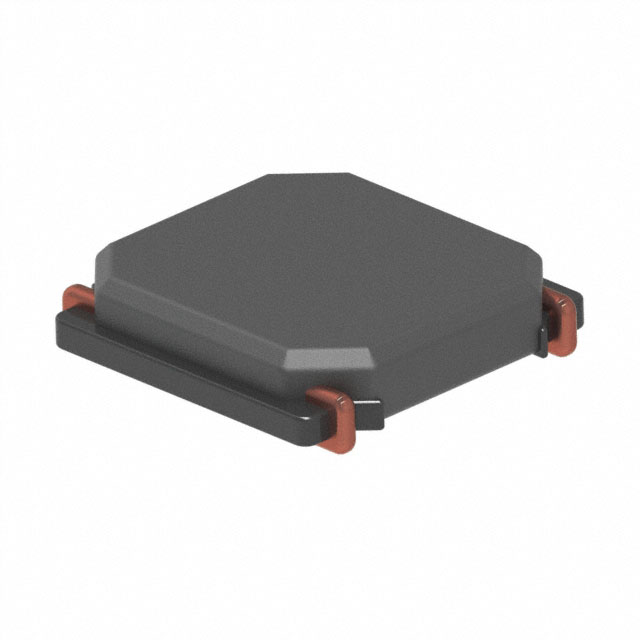

LMLP - 06A6

LMLP06A6N6R8CTAR

Active
KYOCERA AVX

FIXED IND 6.8UH 1.18A 165MOHM SM

Find alt
LMLP - 06A6

LMLP06A6N6R8CTAR

Active
KYOCERA AVX

FIXED IND 6.8UH 1.18A 165MOHM SM

Find alt

Description

General part information

LMLP06A6N6R8CTAR

6.8 µH Shielded Inductor 1.18 A 165mOhm Nonstandard

Technical Specifications

Parameters and characteristics for this part

SpecificationLMLP06A6N6R8CTAR
Current - Saturation (Isat)1.3 A
Current Rating1.18 A
DC Resistance (DCR)165 mOhm
Height - Seated (Max)0.047 in
Inductance6.8 µH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Package / CaseNonstandard
ShieldingShielded
Size / Dimension Length0.236 in
Size / Dimension Width0.236 in
Tolerance30 %
