T1440161121-000

T1440161121-000

Active
TE Connectivity AMP Connectors

HEAVY DUTY CONN, 2 LEVER, SIZE H16B ROHS COMPLIANT: YES

Find alt
T1440161121-000

T1440161121-000

Active
TE Connectivity AMP Connectors

HEAVY DUTY CONN, 2 LEVER, SIZE H16B ROHS COMPLIANT: YES

Find alt

Description

General part information

HDC IP65 Series

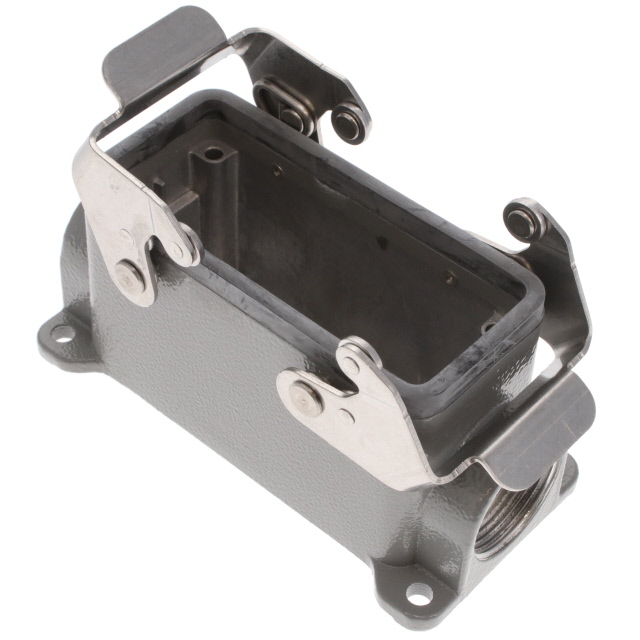

Base - Box Mount Connector Side Entry PG21 H16B IP65 - Dust Tight, Water Resistant

Technical Specifications

Parameters and characteristics for this part

SpecificationT1440161121-000
Connector TypeBase - Box Mount
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialAluminum Alloy, Die Cast
Ingress Protection DescriptionDust Tight, Water Resistant
Ingress Protection IP RatingIP65
Lock LocationLocking Clip (2) on Base Bottom
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
SizeH16B
Size / Dimension Height2.228 in
Size / Dimension Length4.606 in
Size / Dimension Width2.244 in
StyleSide Entry
Thread SizePG21
