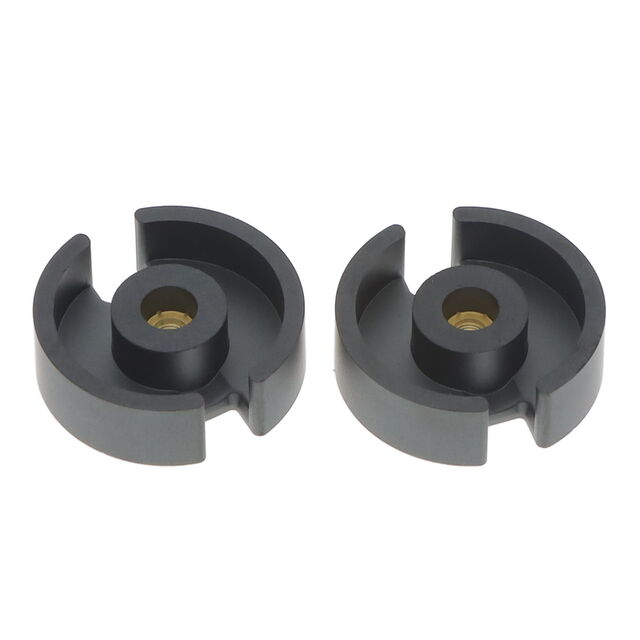

Specification	B65661T0400A048

Core Factor (ΣI/A) mm⁻¹	0.5 mm⁻¹
Diameter	0.866 in
Effective Area (Ae)	63 mm²
Effective Length (le)	31.6 mm
Effective Magnetic Volume (Ve)	1990 mm³
Finish	Uncoated
Gap	Gapped
Height	0.268 in
Initial Permeability (µi)	2300
Material	N48
Package Length	22 mm
Package Name	P
Package Width	13 mm
