Technical Specifications
Parameters and characteristics for this part
| Specification | T493X106M035CC6420 |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 250 mOhm |
| Failure Rate (Percent) | 0.01 % |
| Failure Rate Rating | C |
| Features | High Reliability |
| Height - Seated (Max) | 0.169 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | X |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Ratings | COTS |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 20.02 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information

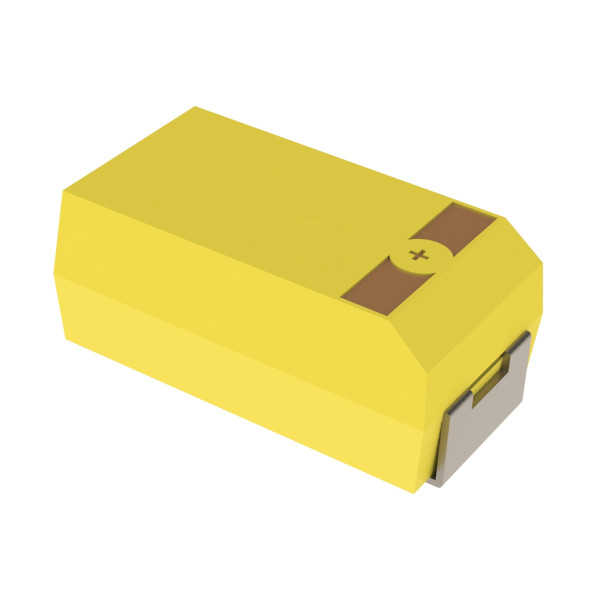

T493X106M035CC6420
10 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 250mOhm @ 100kHz
