2100LL-121-V-RC
ObsoleteBourns Inc.
FIXED IND 120UH 4.1A 39 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2100LL-121-V-RC
ObsoleteBourns Inc.
FIXED IND 120UH 4.1A 39 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2100LL-121-V-RC |
|---|---|
| Current Rating (Amps) | 4.1 A |
| DC Resistance (DCR) | 39 mOhm |
| Material - Core | Sendust |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Shielded |
| Size / Dimension [diameter] | 21.84 mm |
| Size / Dimension [diameter] | 0.86 " |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [y] | 11.43 mm |
| Tolerance | 15 % |
| Type | Toroidal |
2100LL Series
| Part | Material - Core | Size / Dimension [y] | Size / Dimension [diameter] | Size / Dimension [y] | Size / Dimension [diameter] | Mounting Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | Shielding | Current Rating (Amps) | Package / Case | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Sendust | 0.45 in | 21.84 mm | 11.43 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 18 µH | Shielded | 10.1 A | Radial Vertical (Open) | 15 % | ||||
Bourns Inc. | Sendust | 21.84 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 47 µH | Shielded | 5.2 A | Radial Horizontal (Open) | 15 % | 11.43 mm | 0.45 in | 24 mOhm | |||
Bourns Inc. | Sendust | 21.84 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 180 µH | Shielded | 3.7 A | Radial Horizontal (Open) | 15 % | 11.43 mm | 0.45 in | ||||
Bourns Inc. | Sendust | 21.84 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 10 µH | Shielded | 11.4 A | Radial Horizontal (Open) | 15 % | 11.43 mm | 0.45 in | 5 mOhm | |||
Bourns Inc. | Sendust | 0.45 in | 21.84 mm | 11.43 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 47 µH | Shielded | 5.2 A | Radial Vertical (Open) | 15 % | 24 mOhm | |||
Bourns Inc. | Sendust | 0.45 in | 21.84 mm | 11.43 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 390 µH | Shielded | 2.4 A | Radial Vertical (Open) | 15 % | 112 mOhm | |||
Bourns Inc. | Sendust | 21.84 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 56 µH | Shielded | 5 A | Radial Horizontal (Open) | 15 % | 11.43 mm | 0.45 in | 26 mOhm | |||
Bourns Inc. | Sendust | 0.45 in | 21.84 mm | 11.43 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 27 µH | Shielded | 7.3 A | Radial Vertical (Open) | 15 % | 12 mOhm | |||
Bourns Inc. | Sendust | 0.45 in | 21.84 mm | 11.43 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | Shielded | 4.1 A | Radial Vertical (Open) | 15 % | 39 mOhm | ||||
Bourns Inc. | Sendust | 21.84 mm | 0.86 " | Through Hole | Toroidal | -55 °C | 125 °C | 15 µH | Shielded | 10.5 A | Radial Horizontal (Open) | 15 % | 11.43 mm | 0.45 in | 6 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2100LL Series

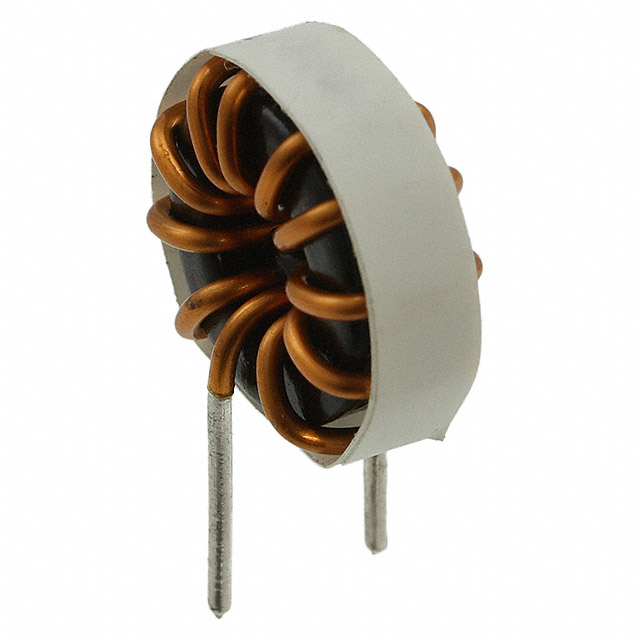

120 µH Shielded Toroidal Inductor 4.1 A 39mOhm Max Radial, Vertical (Open)
