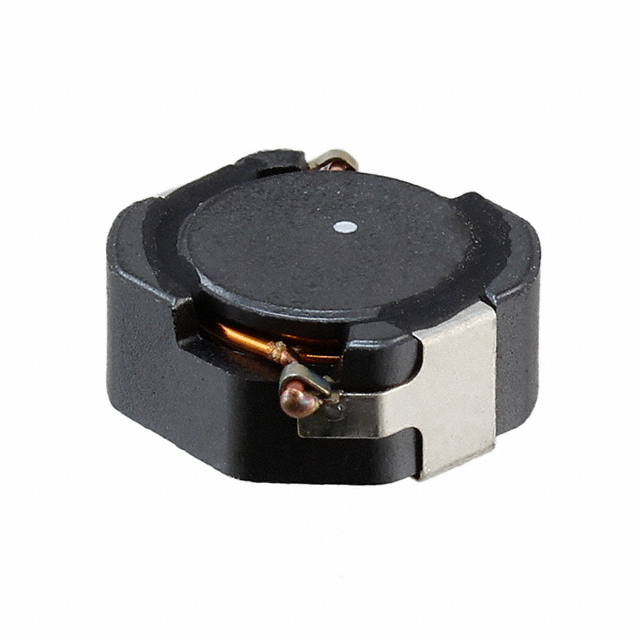

CLF12555T-4R7N
ObsoleteTDK Corporation
FIXED IND 4.7UH 5.3A 15.2MOHM SM
CLF12555T-4R7N
ObsoleteTDK Corporation
FIXED IND 4.7UH 5.3A 15.2MOHM SM
Description
General part information
CLF12555T-4R7N
4.7 µH Shielded Drum Core, Wirewound Inductor 5.3 A 15.2mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CLF12555T-4R7N |
|---|---|
| Current - Saturation (Isat) | 9.6 A |
| Current Rating | 5.3 A |
| DC Resistance (DCR) (Max) | 15.2 mOhm |
| Height - Seated (Max) | 0.23 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.476 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
