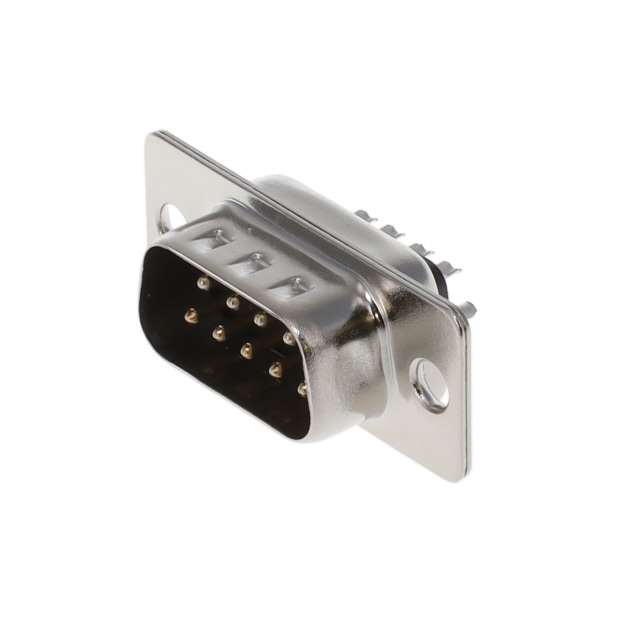

K85X-EA-9P
ActiveKycon, Inc.
CONN D-SUB PLUG 9P VERT SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
K85X-EA-9P
ActiveKycon, Inc.
CONN D-SUB PLUG 9P VERT SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K85X-EA-9P |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.14 | |
| 10 | $ 1.81 | |||
| 25 | $ 1.70 | |||
| 56 | $ 1.61 | |||
| 112 | $ 1.53 | |||
| 280 | $ 1.43 | |||
| 504 | $ 1.38 | |||
| 1008 | $ 1.31 | |||
| 2520 | $ 1.23 | |||
Description
General part information
K85X-EA-9P
9 Position D-Sub Plug, Male Pins Connector
