2445859-4
ActiveTE Connectivity AMP Connectors
36POS,HYBRID,SOC HSG ASSY,SLD,COD D
2445859-4
ActiveTE Connectivity AMP Connectors
36POS,HYBRID,SOC HSG ASSY,SLD,COD D
Description
General part information
DEUTSCH NTSEAL Series

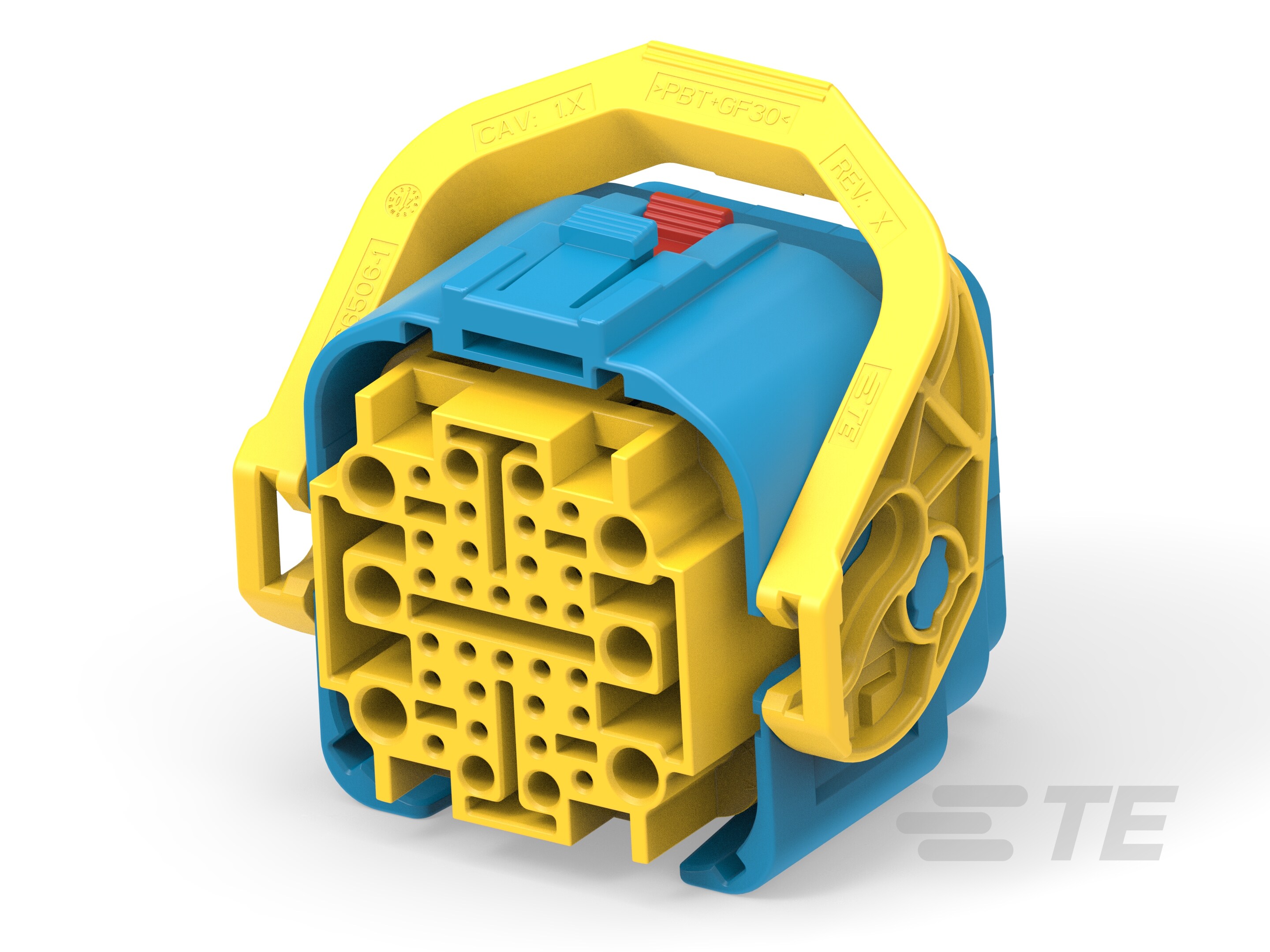

36 Position Housing, Plug, Cable-to-Cable, Sealable, Blue, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), DEUTSCH NTSEAL
Technical Specifications
Parameters and characteristics for this part
| Specification | 2445859-4 |
|---|---|
| Color | Blue |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Features | Connector Position Assurance (CPA), Sealed, Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 36 |
| Number of Rows | 7 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
