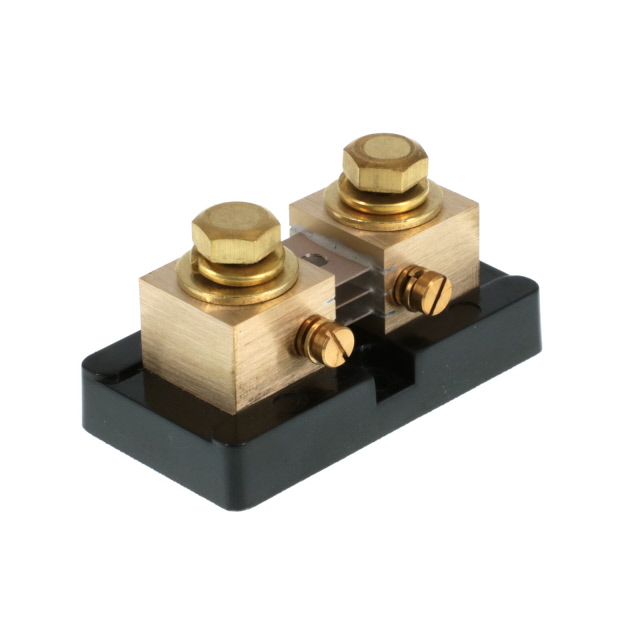

RSB-300-50
ActiveBourns Inc.
CURRENT SHUNT, 300A, 0.25%, 0.05V ROHS COMPLIANT: YES
RSB-300-50
ActiveBourns Inc.
CURRENT SHUNT, 300A, 0.25%, 0.05V ROHS COMPLIANT: YES
Description
General part information
RSB-300-50
166.7 µOhms ±0.25% 15W Metal Element Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB-300-50 |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 1.65 in |
| Lead Style | M4 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Rectangular Case |
| Power (Watts) | 15 W |
| Resistance | 166.7 µOhms |
| Size / Dimension Length | 1.75 in |
| Size / Dimension Width | 3.26 in |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 0.25 % |
