40705
ActiveTE Connectivity AMP Connectors

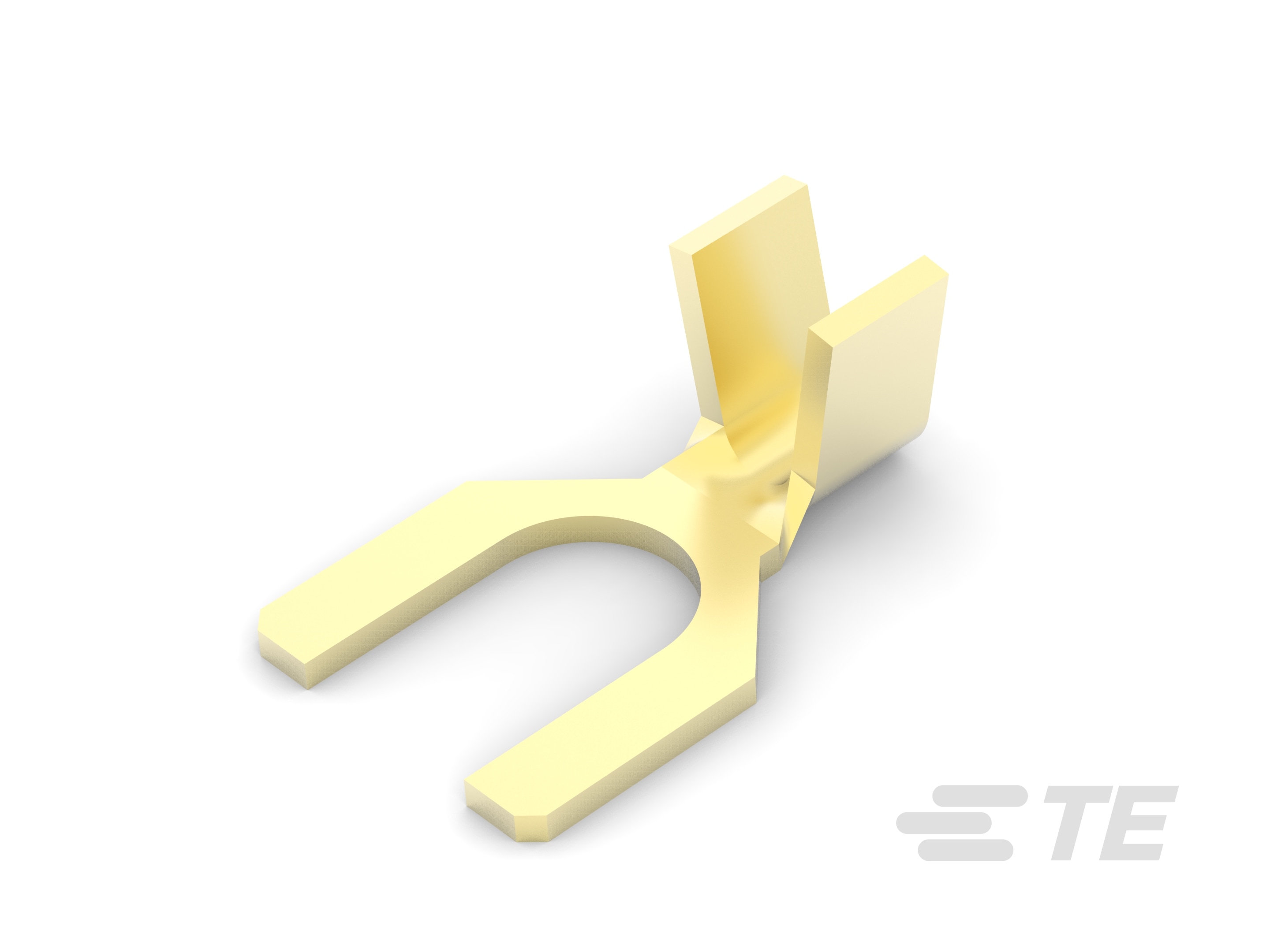

SPADE 164(4.17 MM) TERMINAL 18-14 AWG BR
40705
ActiveTE Connectivity AMP Connectors
SPADE 164(4.17 MM) TERMINAL 18-14 AWG BR
Description
General part information
40705
Spade Tongue Terminal, 18 – 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Open Barrel, Straight, Unplated Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 40705 |
|---|---|
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.542 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 0.275 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
