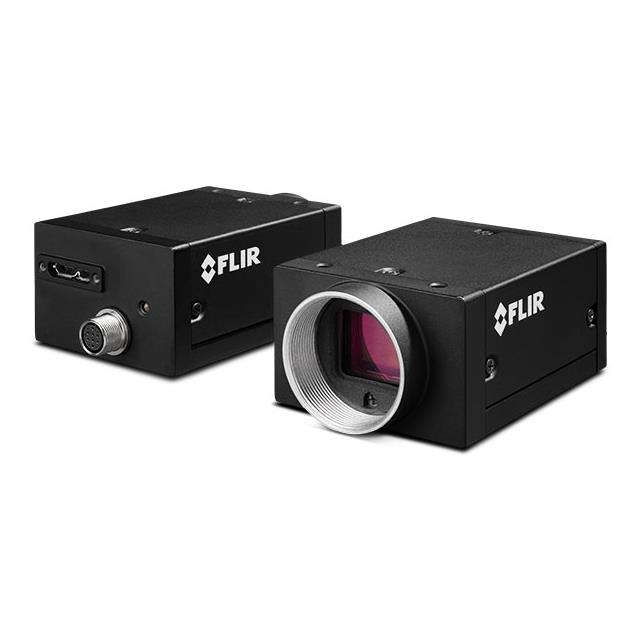

GS3-U3-23S6M-C
ActiveFLIR Integrated Imaging Solutions, Inc.
2.3MP B&W U3 1/1.2" C-MOUNT
GS3-U3-23S6M-C
ActiveFLIR Integrated Imaging Solutions, Inc.
2.3MP B&W U3 1/1.2" C-MOUNT
Description
General part information
GS3-U3-23S6M-C
2.3MP B&W U3 1/1.2" C-MOUNT
Technical Specifications
Parameters and characteristics for this part
| Specification | GS3-U3-23S6M-C |
|---|---|
| Color | Monochrome |
| Frames per Second | 163 fps |
| Height (Max) | 1.142 in |
| Lens Mount | C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Package Name | Module |
| Pixel Size (Length) | 5.86 µm |
| Pixel Size (Width) | 5.86 µm |
| Resolution Height | 1200 |
| Resolution Width | 1920 |
| Sensor | IMX174 |
| Shutter | Global |
| Size / Dimension Length | 1.732 in |
| Size / Dimension Width | 2.264 in |
| Type | CMOS |
| USB Version | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
