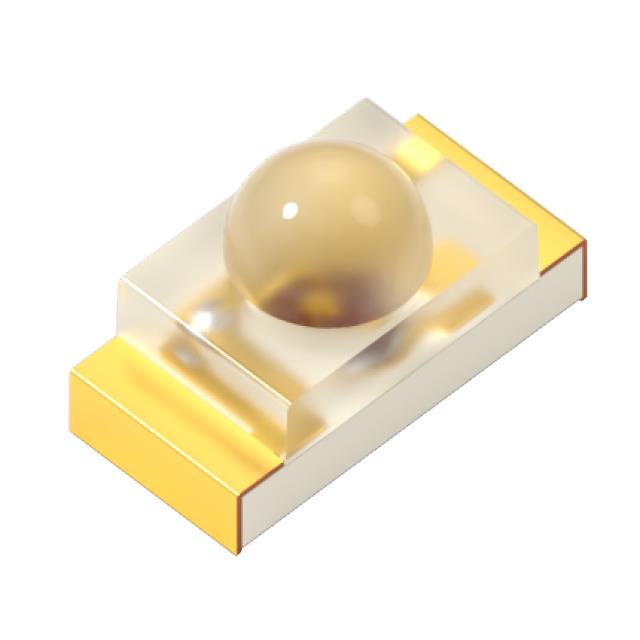

Specification	APTD1608LSURCK

Color	Red
Configuration	Standard
Current - Test	2 mA
Height (Max)	1.1 mm
Lens Color	Colorless
Lens Diameter	0.7 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	110 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Package Name	1608
Size / Dimension Length	1.6 mm
Size / Dimension Width	0.8 mm
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	1.75 V
Wavelength - Dominant	630 nm
Wavelength - Peak	645 nm

APTD1608 Series

Part	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Wavelength - Peak	Package / Case	Package Name	Configuration	Lens Diameter	Lens Style	Lens Transparency	Height (Max)	Viewing Angle	Lens Color	Current - Test	Millicandela Rating	Size / Dimension Width	Size / Dimension Length	Mounting Type	Color
Kingbright APTD1608CGCK	2.1 V	570 nm	574 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	190 mcd	0.8 mm	1.6 mm	Surface Mount	Green
Kingbright APTD1608VBC/D	3.3 V	470 nm	465 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	40 °	Colorless	20 mA	350 mcd	0.8 mm	1.6 mm	Surface Mount	Blue
Kingbright APTD1608SYCK	2 V	590 nm	590 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	450 mcd	0.8 mm	1.6 mm	Surface Mount	Yellow
Kingbright APTD1608SECK/J3-PF	2.2 V	625 nm	640 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	800 mcd	0.8 mm	1.6 mm	Surface Mount	Red
Kingbright APTD1608SEC/J3	2.2 V	625 nm	640 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	900 mcd	0.8 mm	1.6 mm	Surface Mount	Red
Kingbright APTD1608LVBC/D	2.65 V	470 nm	465 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	40 °	Colorless	2 mA	65 mcd	0.8 mm	1.6 mm	Surface Mount	Blue
Kingbright APTD1608LQBC/D	2.65 V	465 nm	460 nm	0603 (1608 Metric)	1608	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	40 °	Colorless	2 mA	20 mcd	0.8 mm	1.6 mm	Surface Mount	Blue
Kingbright APTD1608SYCK/J3-PF	2 V	590 nm	590 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	800 mcd	0.8 mm	1.6 mm	Surface Mount	Yellow
Kingbright APTD1608LSECK/J3-PF	1.8 V	625 nm	640 nm	0603 (1608 Metric)	2-SMD	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	2 mA	50 mcd	0.8 mm	1.6 mm	Surface Mount	Red
Kingbright APTD1608SURCK	1.95 V	630 nm	645 nm	0603 (1608 Metric)	Chip LED	Standard	0.7 mm	Domed Top Round	Clear	1.1 mm	60 °	Colorless	20 mA	250 mcd	0.8 mm	1.6 mm	Surface Mount	Red
