Wakefield Thermal Solutions

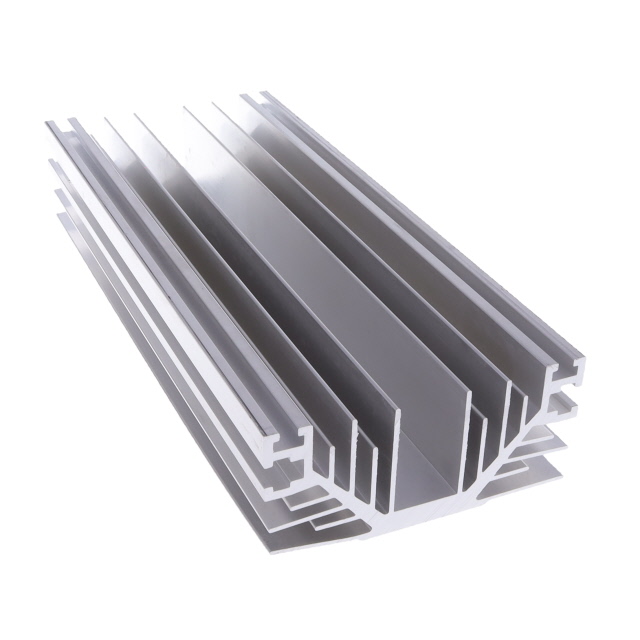

5.00" WIDE X 12" PRESSPACK SCR EXTRUSION 16082 XX3560-2 ROHS COMPLIANT: YES

Find alt
125526

125526

Active
Wakefield Thermal Solutions

5.00" WIDE X 12" PRESSPACK SCR EXTRUSION 16082 XX3560-2 ROHS COMPLIANT: YES

Find alt

Description

General part information

125526

Heat Sink SCR Aluminum Board Level, Extrusion

Technical Specifications

Parameters and characteristics for this part

Specification125526
Attachment MethodPress Fit
Fin Height2.25 in
Length12 in
MaterialAluminum
Package CooledSCR
ShapeFins, Rectangular
Thermal Resistance0.35 °C/W
TypeBoard Level, Extrusion
Width5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
