140000225
ActiveMcGill Microwave Systems
EFD 2412/...-SMA
140000225
ActiveMcGill Microwave Systems
EFD 2412/...-SMA
Description
General part information
140000225

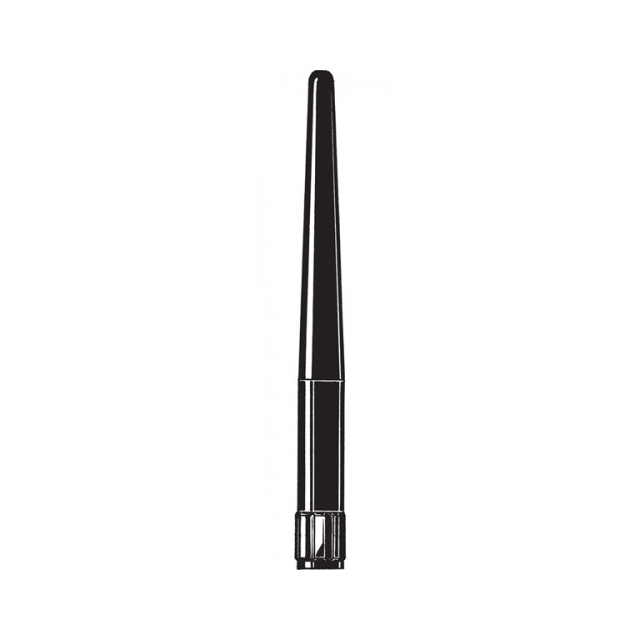

RF ANTENNA ISM, WLAN Whip, Straight SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 140000225 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | WLAN, ISM |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.3 GHz |
| Gain | 5 dBi |
| Height (Max) | 4.331 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 25 W |
| RF Family/Standard | WiFi, General ISM |
| Termination Type | SMA Male |
| VSWR | 1.7 |
