B37981M1102K051
ObsoleteEPCOS - TDK Electronics
CAP CER 1000PF 100V X7R RADIAL
B37981M1102K051
ObsoleteEPCOS - TDK Electronics
CAP CER 1000PF 100V X7R RADIAL
Description
General part information
B37981M1102K051

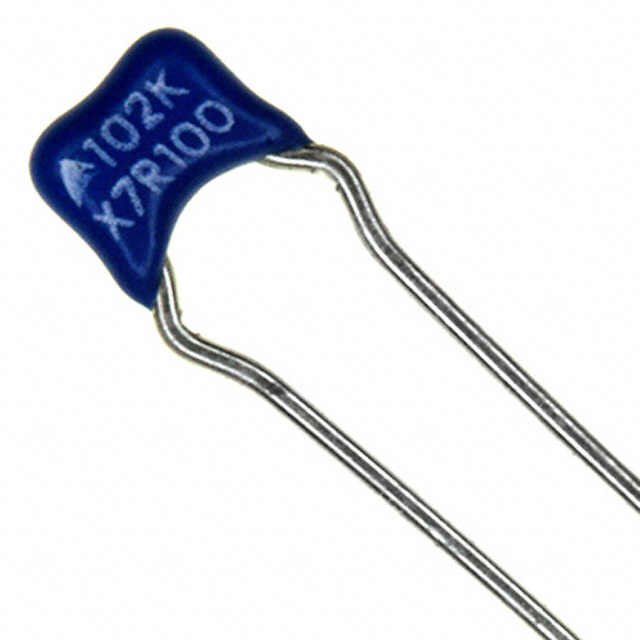

1000 pF ±10% 100V Ceramic Capacitor X7R Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B37981M1102K051 |
|---|---|
| Applications | Automotive |
| Capacitance | 1000 pF |
| Height - Seated (Max) | 0.098 in |
| Lead Spacing | 0.098 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.217 in |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | X7R |
| Tolerance | 10 % |
| Voltage - Rated | 100 VAC/DC |
