FPC ANT, HDP 50MM MHF4 CEL, 698-5000MHZ

Find alt
L000486-05

L000486-05

Active
TE Connectivity AMP Connectors

FPC ANT, HDP 50MM MHF4 CEL, 698-5000MHZ

Find alt

Description

General part information

L000486-05

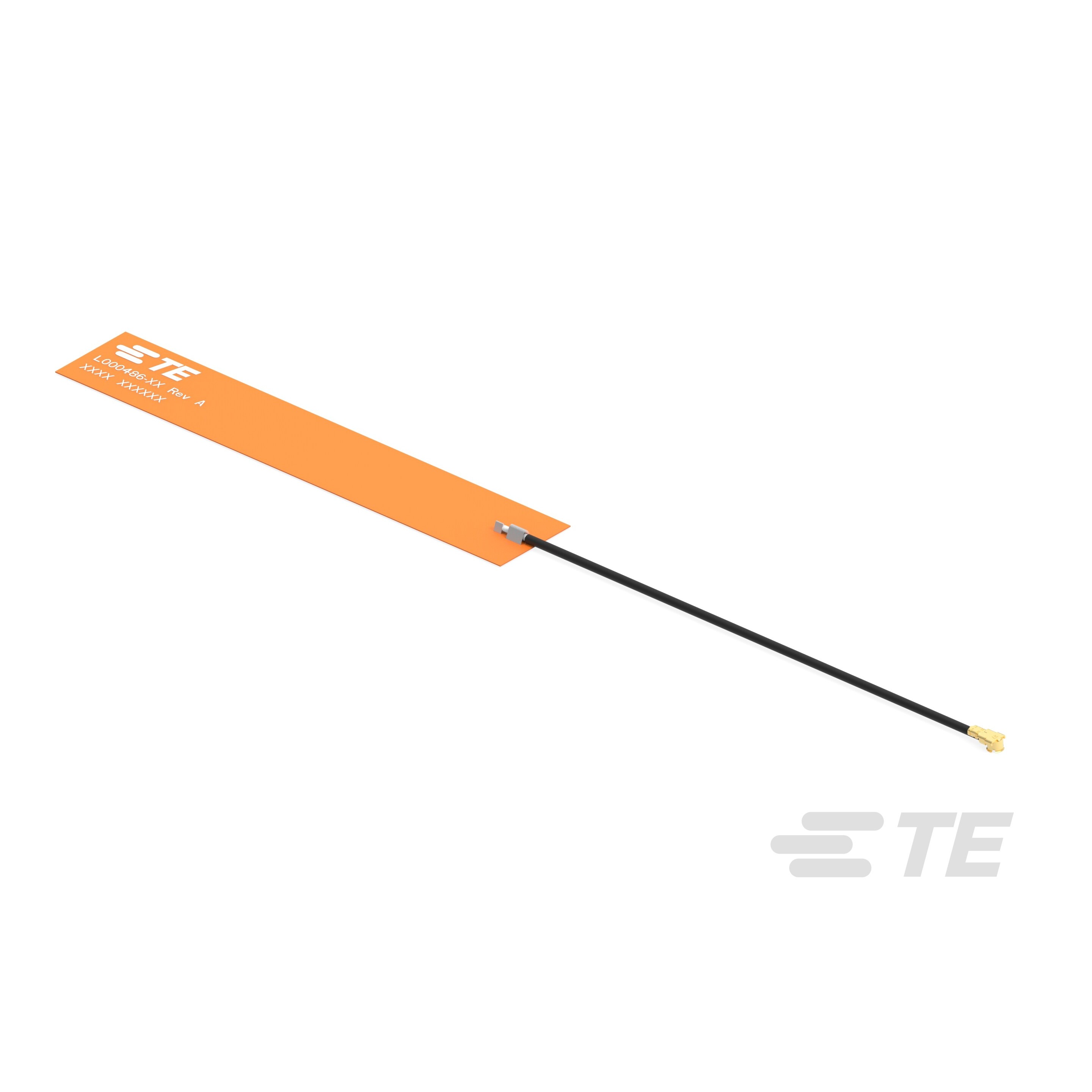

Flexible PCB (FPC) Antenna, Multi Band, 5G, Internal/Embedded Mount, Adhesive Mount, MHF4, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationL000486-05
Antenna TypeFlat Patch
ApplicationsNB-IoT, 5G, LTE, CAT-M
FeaturesCable, 50mm
Frequency (Center/Band)2.3GHz, 1.472GHz, 1.945GHz, 2.593GHz, 4GHz, 829MHz, 3.55GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum698 MHz
Frequency Range (Band 2) Maximum1.517 GHz
Frequency Range (Band 2) Minimum1.427 GHz
Frequency Range (Band 3) Maximum2.2 GHz
Frequency Range (Band 3) Minimum1.69 GHz
Frequency Range (Band 4) Maximum2.4 GHz
Frequency Range (Band 4) Minimum2.2 GHz
Frequency Range (Band 5) Maximum2.69 GHz
Frequency Range (Band 5) Minimum2.496 GHz
Frequency Range (Band 6) Maximum3.8 GHz
Frequency Range (Band 6) Minimum3.3 GHz
Frequency Range (Band 7) Maximum4.2 GHz
Frequency Range (Band 7) Minimum3.8 GHz
Gain3.5 dBi, 3.2 dBi, 1.3 dBi, 3.9 dBi, 3.8 dBi
Height (Max)0.047 in
Mounting TypeAdhesive
Number of Bands7
Power - Max10 VA
RF Family/StandardCellular
TerminationMHF4L
VSWR2, 2.5, 3
