M39006/22-0156
ActiveKYOCERA AVX
CAP TANT 68UF 20% 60V AXIAL
M39006/22-0156
ActiveKYOCERA AVX
CAP TANT 68UF 20% 60V AXIAL
Description
General part information
M39006/22-0156

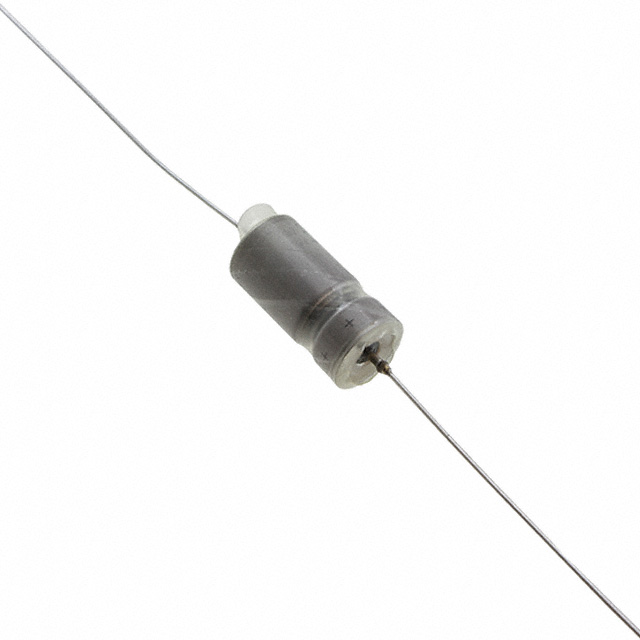

68 µF Hermetically Sealed Tantalum Capacitors 60 V Axial 2.54Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | M39006/22-0156 |
|---|---|
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 2.54 Ohm |
| Failure Rate (Percent) | 1 % |
| Failure Rate Rating | M |
| Features | Wet Tantalum, High Reliability |
| Grade | Military |
| Manufacturer Size Code | T3 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Qualification | MIL-PRF-39006, 22 |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 0.766 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 60 VDC |
