FMC00752-18
ActiveFairview Microwave
CBL ASSY SMPJACK-MINI SMPJACK 18
FMC00752-18
ActiveFairview Microwave
CBL ASSY SMPJACK-MINI SMPJACK 18
Description
General part information
FMC00752-18

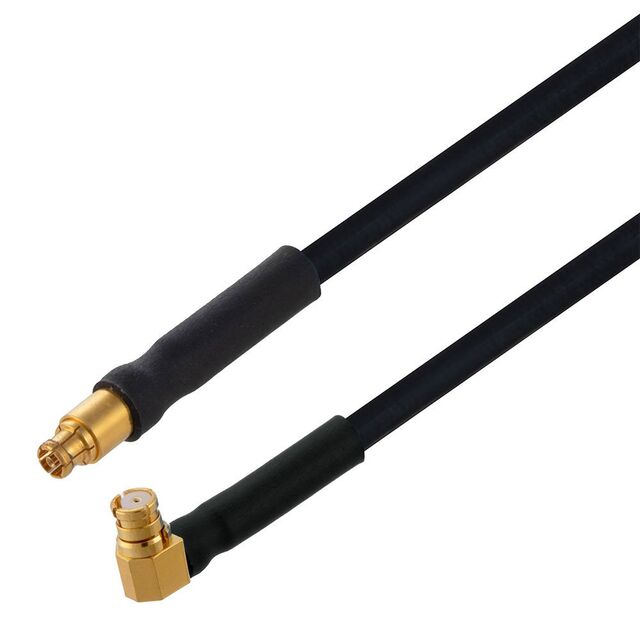

Cable Assembly Coaxial SMP Mini to SMP Mini Hand Formable .047 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00752-18 |
|---|---|
| 1st Connector | Mini SMP Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMP Jack, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 18 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMP Mini |
