Description
General part information

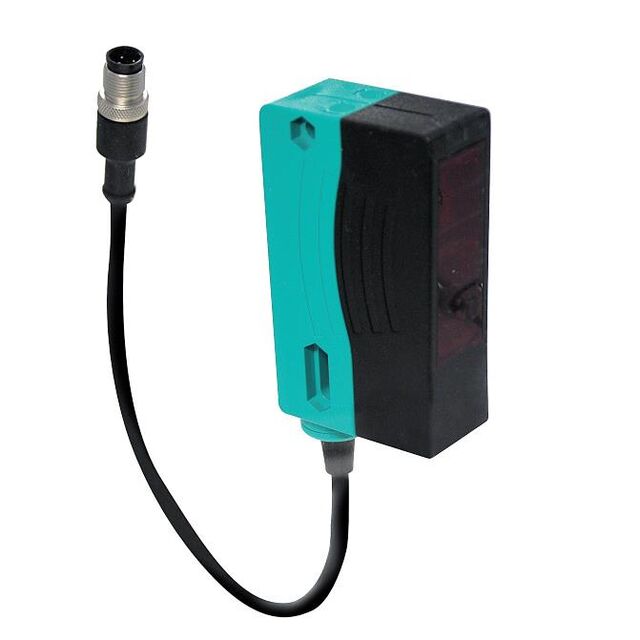

RL28-55-3018/35/44/47/115B
Retroreflective Optical Sensor 0" ~ 787.402" (0m ~ 20m) PNP - Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | RL28-55-3018/35/44/47/115B |
|---|---|
| Adjustment Type | Fixed |
| Cable Length | 11.81 in |
| Connection Method | M12, Cable with Connector |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 660 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | PNP - Light-ON |
| Response Time | 2 ms |
| Sensing Distance Maximum | 787.402 " |
| Sensing Distance Minimum | 0 cm |
| Sensing Method | Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
