2035170-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONTACT, SOCKET, CRIMP, 20AWG ROHS COMPLIANT: YES
2035170-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONTACT, SOCKET, CRIMP, 20AWG ROHS COMPLIANT: YES
Description
General part information
2035170-1

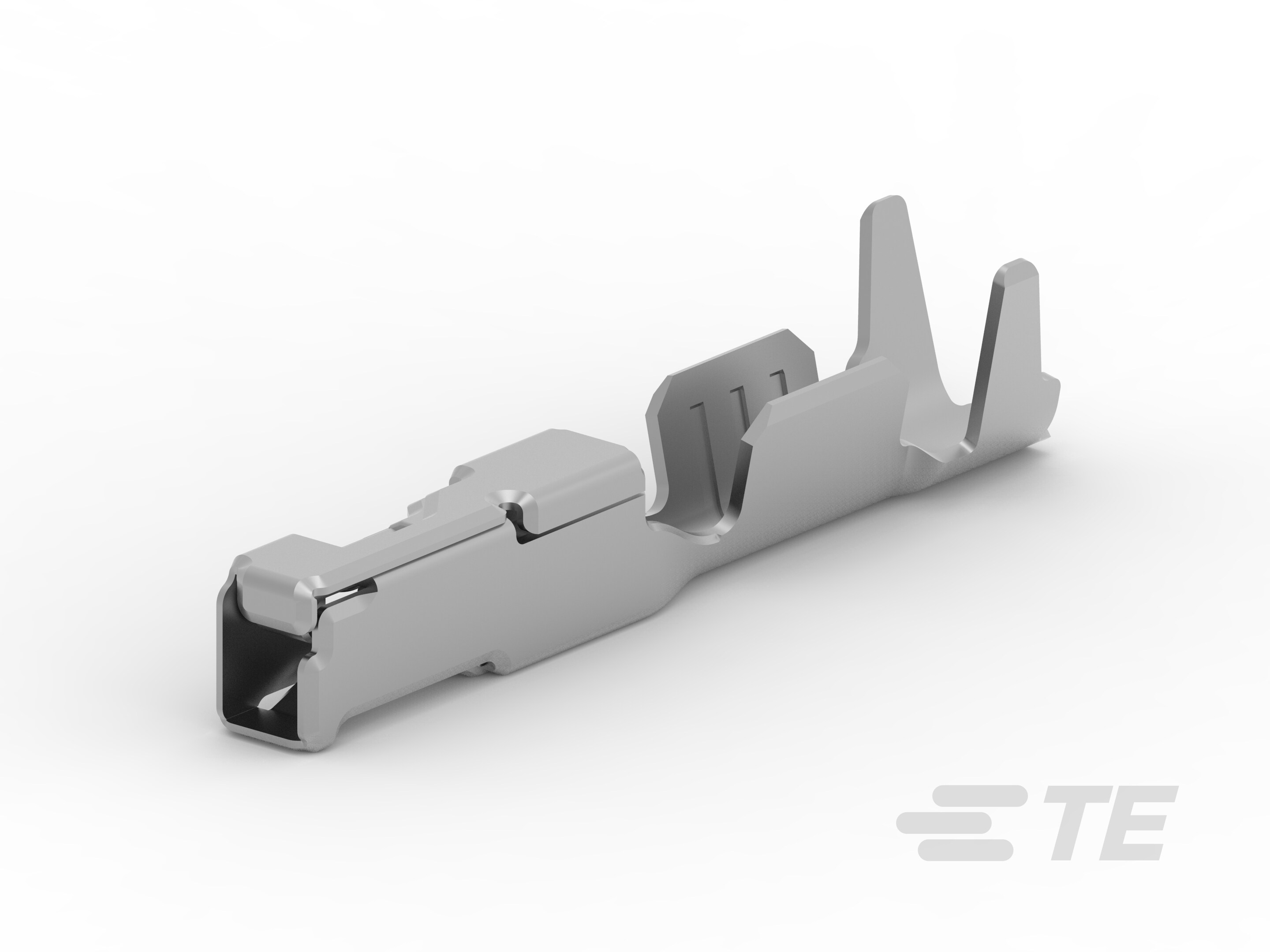

Receptacle Terminal, 22 – 20 AWG, .35 – .5 mm² Wire, .8 mm [.031 in] Tab Width, Tin (Sn), Sealable, Generation Y Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 2035170-1 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Ąin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Lubricated, Stamped |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
