AM3XF10
ObsoletePanasonic Energy
BATTERY PACK ALKALINE 15V AA
AM3XF10
ObsoletePanasonic Energy
BATTERY PACK ALKALINE 15V AA
Description
General part information
AM3XF10

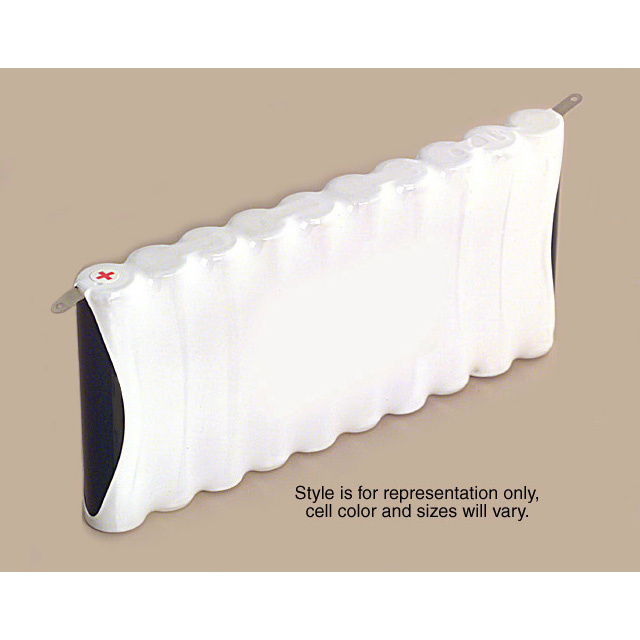

AA 15 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | AM3XF10 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Number of Cells | 10 |
| Rechargeability | No |
| Size / Dimension Height | 1.99 in |
| Size / Dimension Length | 5.71 in |
| Size / Dimension Width | 0.57 in |
| Structure | Side to Side |
| Structure Cells | 10 |
| Structure Rows | 1 |
| Termination Style | Solder Tab |
| Voltage - Rated | 15 V |
| Weight | 226.8 g |
