MCIMX6QP-SDB

Active

NXP USA Inc.

I.MX6Q APPLICATION PROCESSOR AND SOC DEVELOPMENT BOARD 1000MHZ CPU 1GB RAM 8GB EMMC FLASH ANDROID/LINUX/QNX/WINCE

Find alt

Alpha

MCIMX6QP-SDB

Active

NXP USA Inc.

I.MX6Q APPLICATION PROCESSOR AND SOC DEVELOPMENT BOARD 1000MHZ CPU 1GB RAM 8GB EMMC FLASH ANDROID/LINUX/QNX/WINCE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCIMX6 Series

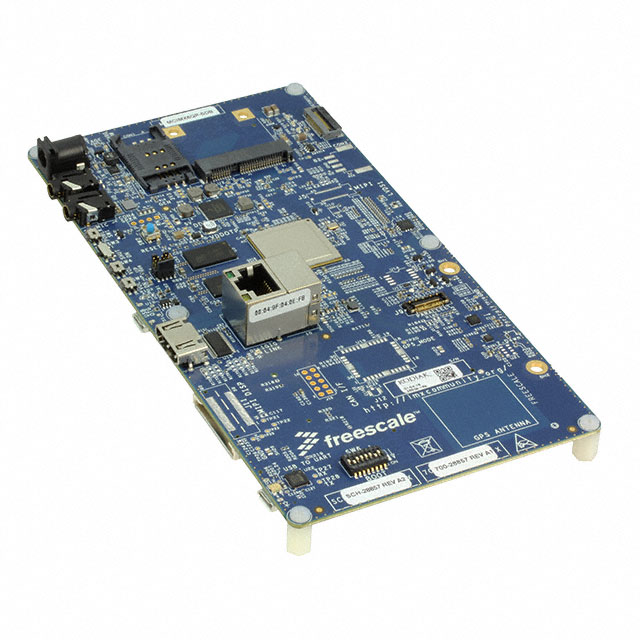

MCIMX6QP-SDB is a SABRE board for smart devices based on the i.MX 6QuadPlus applications processors. The NXP® smart application blueprint for rapid engineering (SABRE) board for smart devices introduces developers to multicore processing, low-power consumption and leading-edge multimedia and graphics applications on the i.MX 6 series applications processors. MCIMX6QP-SDB enables development on i.MX 6QuadPlus & i.MX 6DualPlus processors. The SABRE board for smart devices provides you with a low-cost development platform which includes all primary features of the processors and serves as an example for how to layout complex, high-speed interfaces such as DDR. It includes complete hardware design files. There are also a number of accessory boards that work with the SABRE-SDB to provide additional capabilities such as multi-touch display and Wi-Fi® connectivity. In addition to optimized BSPs for Android™, Linux®, also provides a large portfolio of optimized video, speech and audio codecs.

Technical Specifications

Parameters and characteristics for this part

Specification	MCIMX6QP-SDB

Board Type	Evaluation Platform
Contents	Power Supply, Accessories, Board
Core Processor	ARM® Cortex®-A9
Mounting Type	Fixed
Operating System	Android
Platform	SABRE
Type	MPU
Utilized IC / Part	i.MX 6QuadPlus

MCIMX6 Series

...

Part	Display & Interface Controllers	Bus Width	Number of Cores	Voltage - I/O (Option 2)	Voltage - I/O (Option 4)	Voltage - I/O (Option 3)	Voltage - I/O (Option 1)	Security Features	Core Processor	Package Length	Package Name	Package Width	Graphics Acceleration	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	USB 2.0 PHY Count	USB	Mounting Type	RAM Controllers	Co-Processors/DSP	Additional Interfaces	Speed	Ethernet Ports	Ethernet Speed Options	SATA Speed	SATA Interface	SATA Port Count	USB OTG Count
NXP USA Inc. MCIMX6U1AVM08AC	HDMI Keypad LCD LVDS MIPI	32 Bit	2 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ MPE	Bluetooth CANbus ESAI I2C I2S MMC/SD/SDIO SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6Q4AVT08ACR	Keypad LCD	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1
NXP USA Inc. MCIMX6S6AVM08AC	Keypad LCD	32 Bit	1 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6QP4AVT8AB	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
NXP USA Inc. MCIMX6Q5EZK08AE	Keypad LCD	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	12 mm	569-MAPBGA	12 mm	Yes	105 °C	-20 °C	569-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1
NXP USA Inc. MCIMX6X2EVN10AC	Keypad LCD	32 Bit	2 Core	2.5 V	3.15 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SNVS System JTAG TVDECODE	ARM® Cortex®-A9 ARM® Cortex®-M4	17 mm	400-MAPBGA	17 mm	Yes	105 °C	-20 °C	400-LFBGA	1 count	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ MPE	AC'97 CAN I2C I2S MMC/SD/SDIO PCIe SAI SPDIF SPI SSI UART	1 GHz 227 MHz	2	1000Mbps 100Mbps 10Mbps				2 count
NXP USA Inc. MCIMX6S5EVM10AC	Keypad LCD	32 Bit	1 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	105 °C	-20 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6U6AVM10AC	Keypad LCD	32 Bit	2 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6QP6AVT8ABR	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
NXP USA Inc. MCIMX6QP6AVT8AB	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
