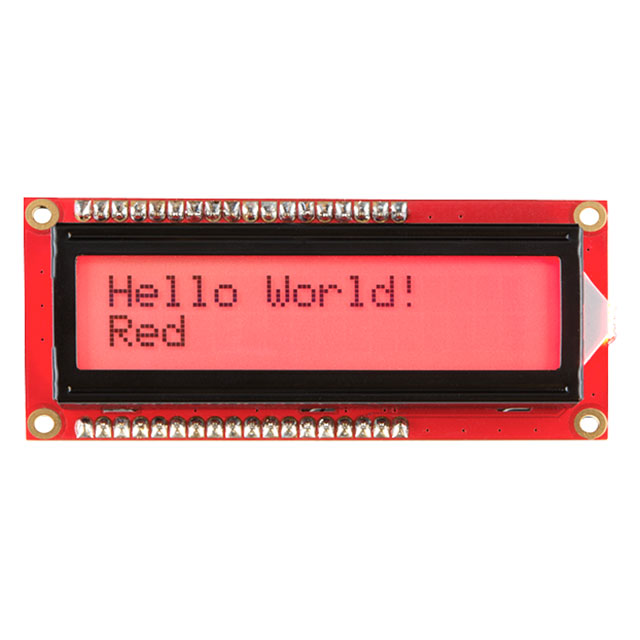

LCD-10862
Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - Red/Green/Blue Parallel, 8-Bit 80.00mm x 36.00mm x 13.50mm
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-10862 |
|---|---|
| Backlight Color | Green, Blue, Red |
| Backlight Type | LED |
| Character Height | 5.23 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 3 mm |
| Character Width (Dots) | 5 Dots |
| Display Columns | 16 |
| Display Mode | Transflective |
| Display Rows | 2 |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Size Height | 0.61 mm |
| Dot Size Width | 0.56 mm |
| Interface | Parallel |
| Interface Data Width | 8 Bit |
| Number of Characters | 32 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.5 mm |
| Outline Length | 80 mm |
| Outline Width | 36 mm |
| Text Color | Black |
| Viewing Area Length | 64.5 mm |
| Viewing Area Width | 16.4 mm |
| Voltage - Supply | 5 VDC |
