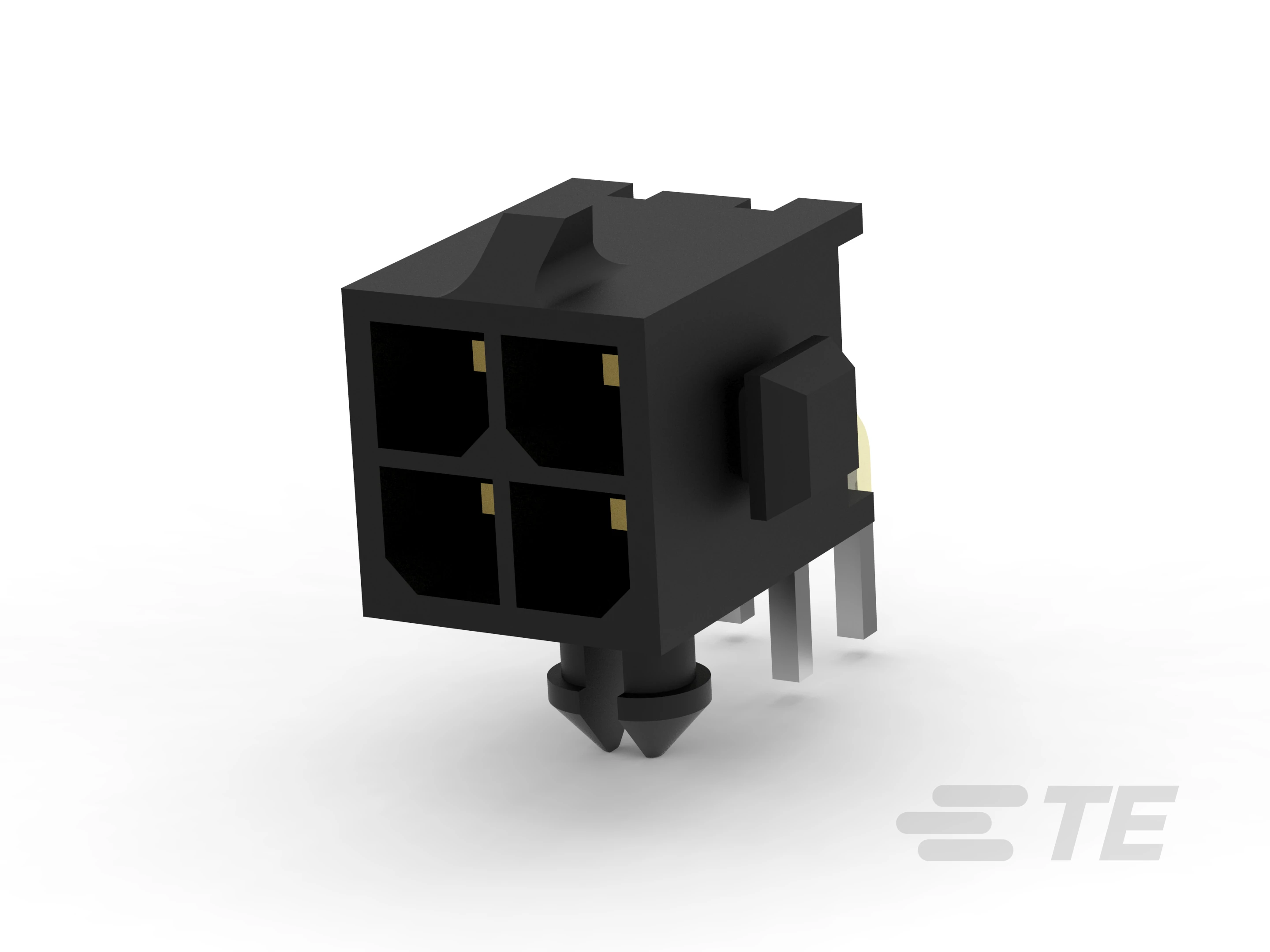

Specification	3-794620-4

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold-Palladium, Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	100 Ąin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	0.29 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

Micro MATE-N-LOK Series

...

Part	Insulation Color	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Number of Positions Loaded	Features	Insulation Material	Mounting Type	Current Rating	Pitch - Mating	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Contact Shape	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Contact Finish - Post	Termination	Number of Rows	Style	Shrouding	Voltage Rating	Applications	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 794619-6	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	6	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 2-794619-0	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	20	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 1-794619-0	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	10	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 794619-2	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge		0.29 in	Header	15 µin	Male Pin	0.118 in	Square	2	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 794619-8	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	8	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
TE Connectivity AMP Connectors 2-794619-4	Black	Locking Ramp	-40 °C	105 °C	Brass	All	Board Lock	Nylon Polyamide (PA)	Right Angle Through Hole	Varies by Wire Gauge	0.118 in	0.29 in	Header	15 µin	Male Pin	0.118 in	Square	24 pos	Gold Gold-Palladium	UL94 V-0	Tin-Lead	Solder	2	Board Cable/Wire	Shrouded - 4 Wall	250 V	General Purpose	100 Ąin
