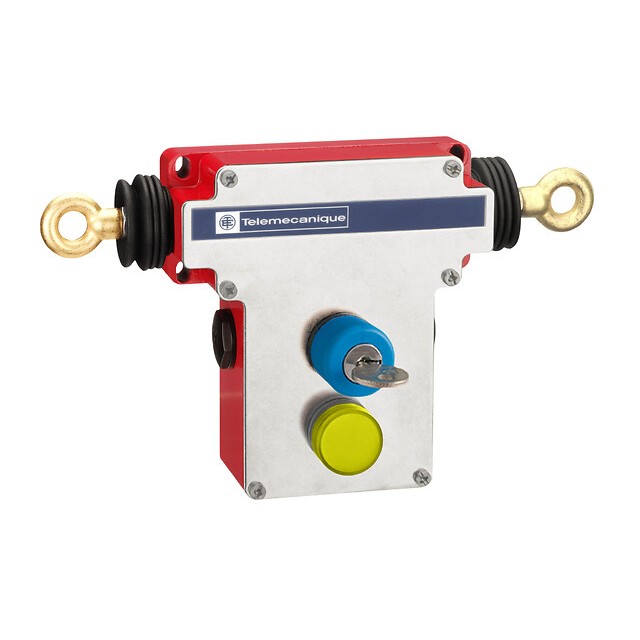

XY2CEDA597
ActiveSCHNEIDER ELECTRIC
GRABWIRE SWITCH, 100 M, SPST-NC, SPST-NO, 240 V, 3 A, 250 V, 270 MA
XY2CEDA597
ActiveSCHNEIDER ELECTRIC
GRABWIRE SWITCH, 100 M, SPST-NC, SPST-NO, 240 V, 3 A, 250 V, 270 MA
Description
General part information
XY2CEDA597
GRABWIRE SWITCH, 100 M, SPST-NC, SPST-NO, 240 V, 3 A, 250 V, 270 MA
Technical Specifications
Parameters and characteristics for this part
| Specification | XY2CEDA597 |
|---|---|
| Circuit | 4PST-2NO/2NC |
| Current Rating | 3 A, 270 mA |
| Features | Push Button Emergency Stop Switch |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Maximum Cable Length | 100 m |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
