ACC001
ActiveVishay Ametherm
THERM NTC 2.252KOHM 3934K BEAD
ACC001
ActiveVishay Ametherm
THERM NTC 2.252KOHM 3934K BEAD
Description
General part information
ACC001

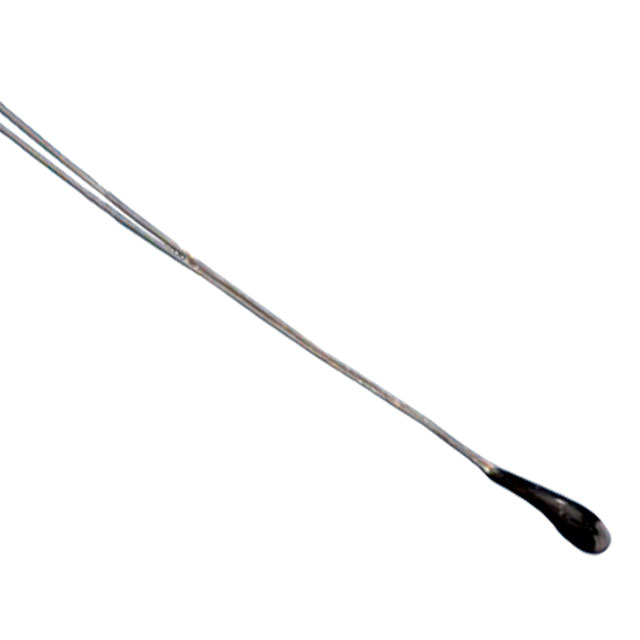

NTC Thermistor 2.252k Bead
Technical Specifications
Parameters and characteristics for this part
| Specification | ACC001 |
|---|---|
| B Value (25/85) | 3988 K |
| B Value Tolerance | 1 % |
| B0/50 Temperature | 3892 K |
| B25/50 | 3934 K |
| B25/75 | 3960 K |
| Beta (B25/100) | 3999 K |
| Length - Lead Wire | 2 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Bead |
| Power - Max | 250 mW |
| Resistance (Ohms) | 2.252 kOhm |
| Resistance Tolerance (%) | 0.88 % |
