Description
General part information

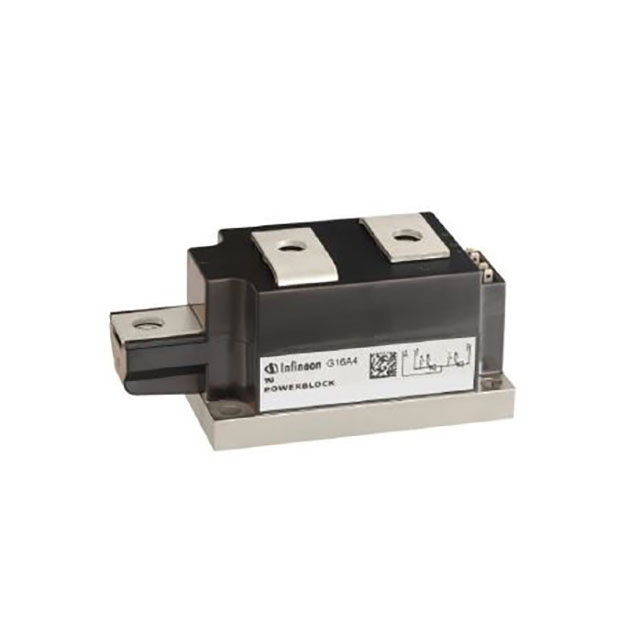

TT370N18KOFHPSA1
Thyristor/Thyristor 50 mm Prime Block 1800 V, 370 A module for phase control inpressure contact technology. TT370N18KOF offers highest current density and highest surge current in standard 50 mm housing.
Technical Specifications
Parameters and characteristics for this part
| Specification | TT370N18KOFHPSA1 |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Non Rep. Surge (Itsm) | 12100 A |
| Current - Non Rep. Surge Frequencies | 50Hz, 60Hz |
| Current - Non Rep. Surge Type | Itsm |
| Current - On State (It (RMS)) (Max) | 520 A |
| Current - On State (Max) | 364 A |
| Mounting Type | Chassis Mount |
| Number of SCRs | 2 count |
| Operating Temperature | 135 °C |
| Package / Case | Module |
| Structure | Series Connection - All SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 1.8 kV |
