2081392-4
ActiveTE Connectivity AMP Connectors

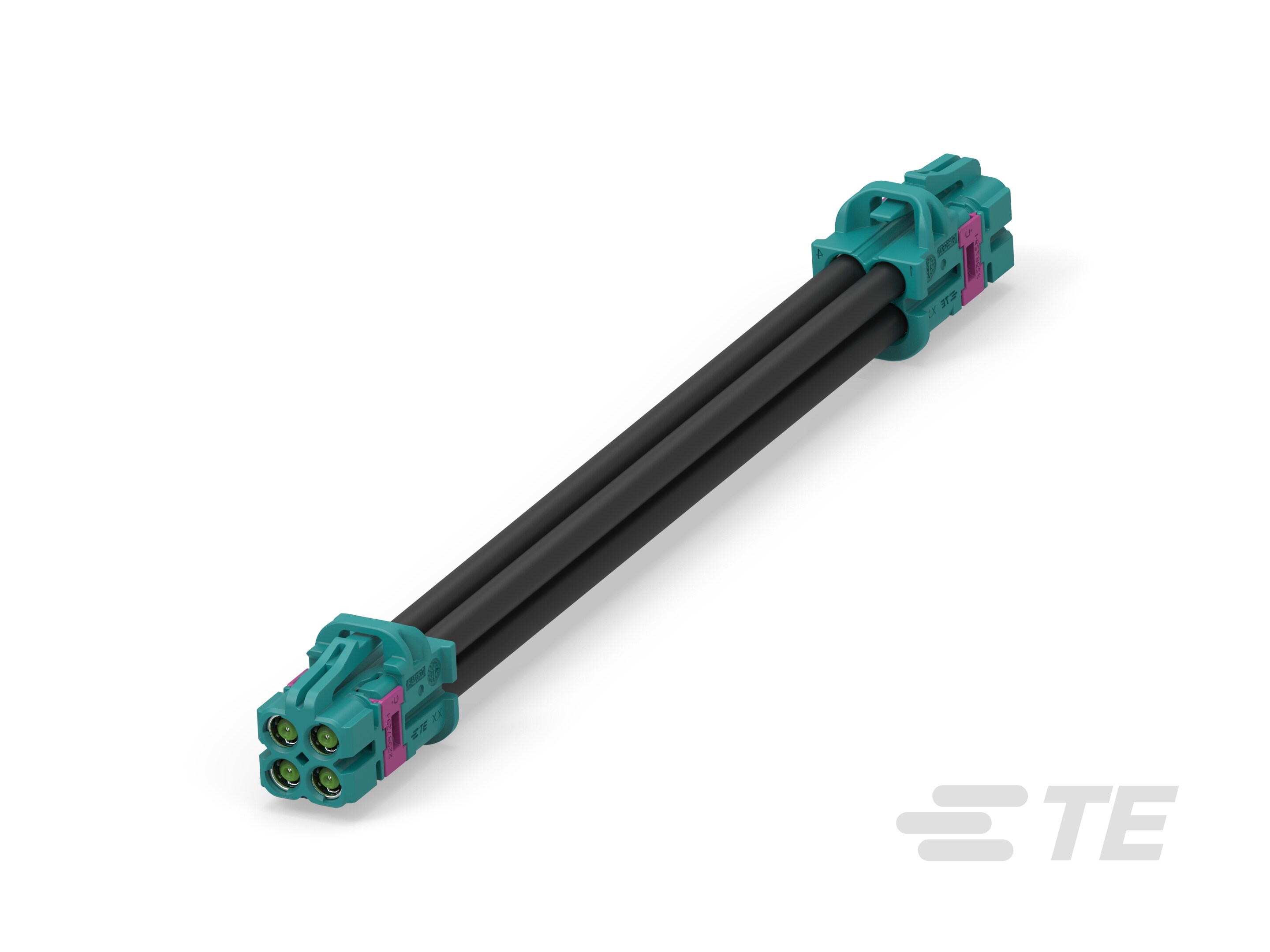

RF / COAXIAL CABLE ASSEMBLY, MATE AX JACK TO MATE AX JACK, RTK031, 50 OHM, 6.6 FT, 2 M, BLACK
2081392-4
ActiveTE Connectivity AMP Connectors
RF / COAXIAL CABLE ASSEMBLY, MATE AX JACK TO MATE AX JACK, RTK031, 50 OHM, 6.6 FT, 2 M, BLACK
Description
General part information
2081392-4
MATE-AX Cable Assembly, 2 m, Black Cable, 0 – 6 GHz, 50 ohm, PVC Jacket, 3.3 mm Diameter, MATE-AX Jack End A, MATE-AX Jack End B
Technical Specifications
Parameters and characteristics for this part
| Specification | 2081392-4 |
|---|---|
| 1st Connector | Fakra Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Fakra Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RTK |
| Cable Type Size | 31 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | Fakra |
