NTCLE428E3103F404A
ActiveVishay Dale
NTC EPOXY 3MM, PVC INSULATED AWG
NTCLE428E3103F404A
ActiveVishay Dale
NTC EPOXY 3MM, PVC INSULATED AWG
Description
General part information
NTCLE428E3103F404A

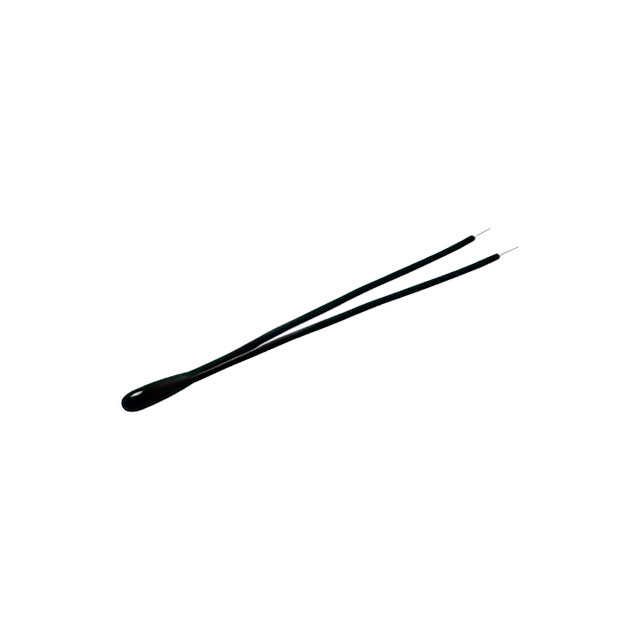

NTC Thermistor 10k Bead, Epoxy
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCLE428E3103F404A |
|---|---|
| B Value (25/85) | 3435 K |
| B Value Tolerance | 1 % |
| Length - Lead Wire | 1.18 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead, Epoxy |
| Power - Max | 100 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 1 % |
