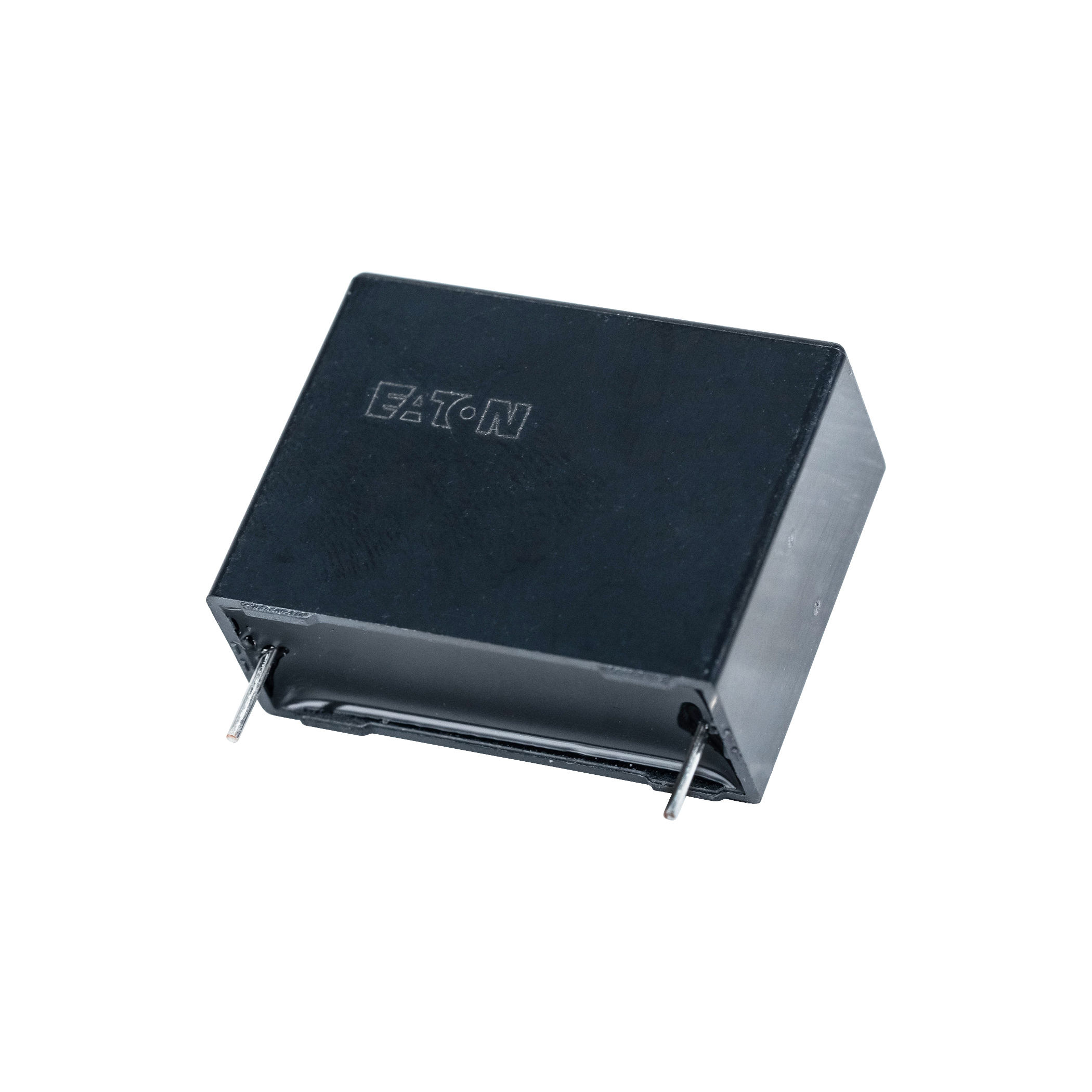

Specification	EFDKA1BK156F014BH

Applications	DC Filtering, DC Link, Automotive
Capacitance	15 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	16.5 mOhm
Height - Seated (Max)	1.811 in
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package Leads	4 Leads
Package Name	Radial
Ratings	AEC-Q200
Size / Dimension Length	2.264 in
Size / Dimension Width	0.984 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	1.1 kVDC
