CMU1010-0000-00PN0Z0A35H
ActiveCreeLED, Inc.
XLAMP CMU LED WHITE PRO9
CMU1010-0000-00PN0Z0A35H
ActiveCreeLED, Inc.
XLAMP CMU LED WHITE PRO9
Description
General part information
CMU1010-0000-00PN0Z0A35H

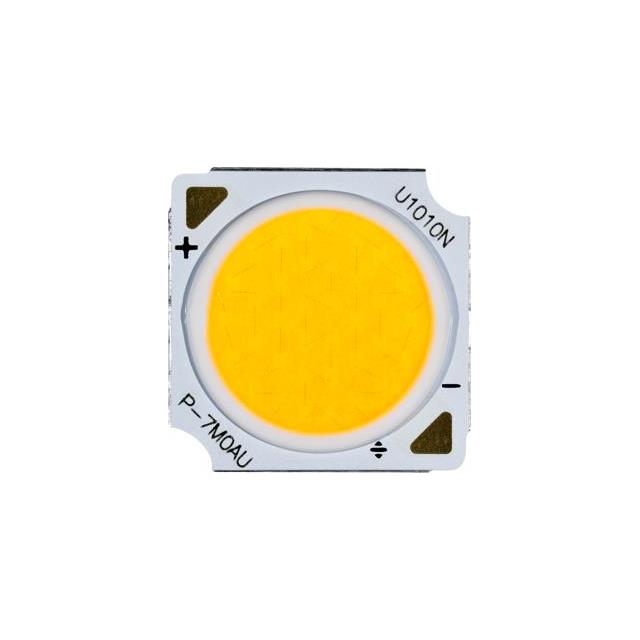

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1010 White, Warm Square
Technical Specifications
Parameters and characteristics for this part
| Specification | CMU1010-0000-00PN0Z0A35H |
|---|---|
| CCT (K) | 3500 K |
| CCT Description | 2-Step MacAdam Ellipse |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 95 |
| Current - Max | 720 mA |
| Current - Test | 270 mA |
| Height | 1.5 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) Diameter | 9.8 mm |
| Lumens/Watt | 162 lm/W |
| Luminous Flux (Typical) | 1471 lm |
| Size / Dimension Length | 13.5 mm |
| Size / Dimension Width | 13.5 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 33.7 V |
