5558524-1
ActiveTE Connectivity AMP Connectors
CONN RJ-45 F 32 POS 2.54MM SOLDER RA THRU-HOLE 32 TERMINAL 4 PORT CAT 5E TRAY
5558524-1
ActiveTE Connectivity AMP Connectors
CONN RJ-45 F 32 POS 2.54MM SOLDER RA THRU-HOLE 32 TERMINAL 4 PORT CAT 5E TRAY
Description
General part information
5558524-1

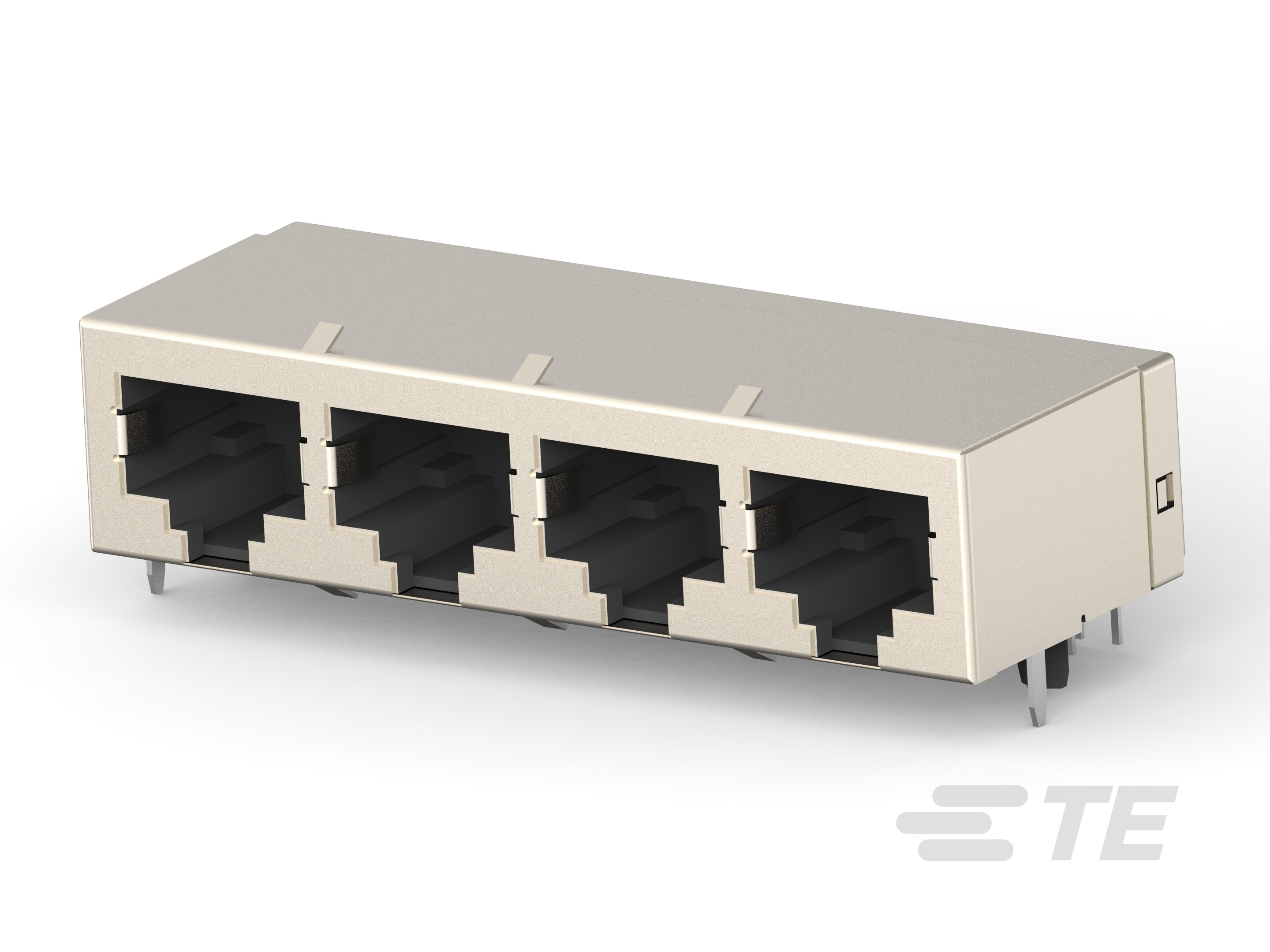

RJ45 Connector, Multiple Ports, 1 x 4, Jack, Shielded, Cat 5e, Standard - Latch Down, 8 Position, Standard Profile, Through Hole - Solder, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 5558524-1 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 4 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Ratings | Cat5 |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down |
| Termination | Solder |
