Description
General part information

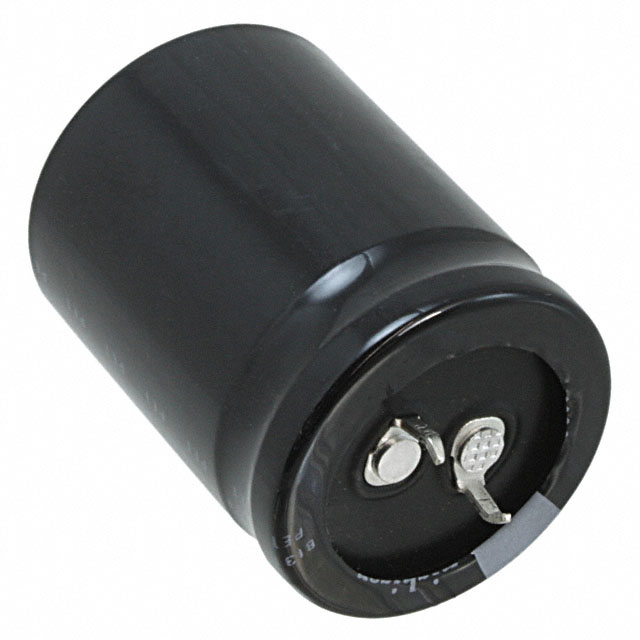

LGU1K392MELB
3900 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LGU1K392MELB |
|---|---|
| Applications | General Purpose |
| Capacitance | 3900 µF |
| Height - Seated (Max) | 1.654 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 3.12 A, 3.588 A |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 80 Vp-p |
