31160
Active3M Electronic Specialty

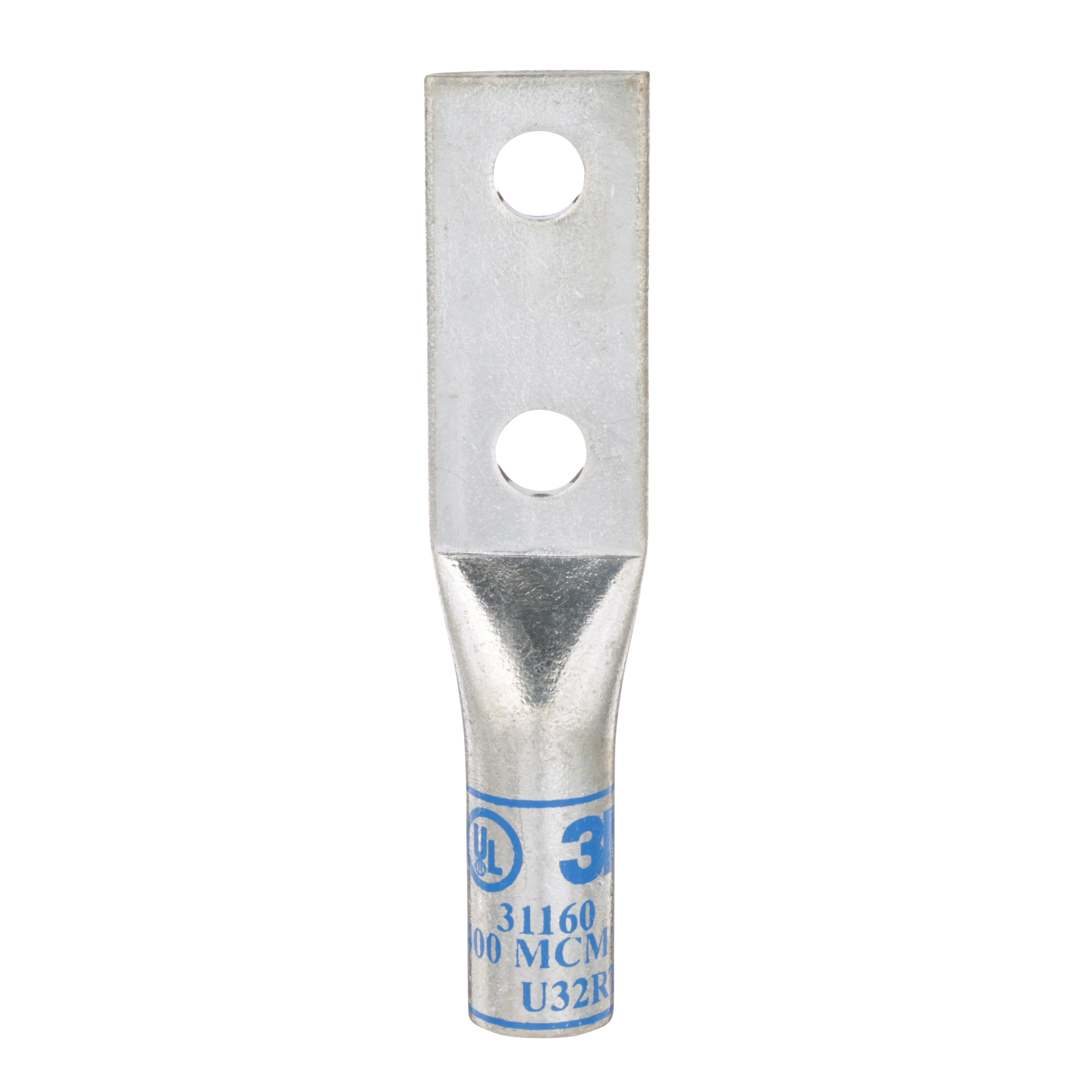

3M(TM) SCOTCHLOK(TM) COPPER TWO HOLE LONG BARREL LUG 31160, UP TO 35 KV, 400 KCMIL, BLUE
31160
Active3M Electronic Specialty
3M(TM) SCOTCHLOK(TM) COPPER TWO HOLE LONG BARREL LUG 31160, UP TO 35 KV, 400 KCMIL, BLUE
Description
General part information
31160
Terminal Connector Rectangular Lug, Grounding 400MCM (kcmil) 1/2 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | 31160 |
|---|---|
| Color | Blue |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.762 in |
| Diameter - Barrel OD | 0.95 in |
| Insulation | Non-Insulated |
| Length - Overall | 0.5 ft |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Style | Two Stud Holes |
| Terminal Type | Lug, Grounding |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 1.41 in |
| Wire Gauge (MCM) | 400 MCM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
