ZB5AC2
ActiveSCHNEIDER ELECTRIC

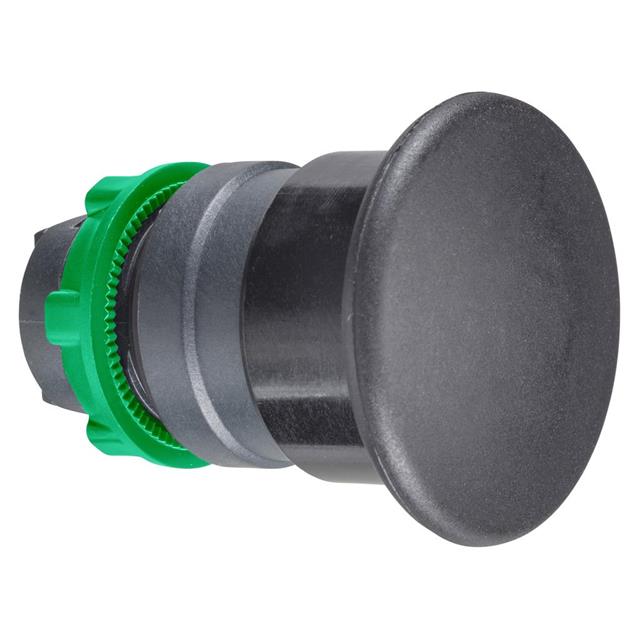

SWITCH ACTUATOR, BLACK, SCHNEIDER HARMONY XB5 SERIES 22MM PUSHBUTTON SWITCHES
ZB5AC2
ActiveSCHNEIDER ELECTRIC
SWITCH ACTUATOR, BLACK, SCHNEIDER HARMONY XB5 SERIES 22MM PUSHBUTTON SWITCHES
Description
General part information
ZB5AC2
Configurable Switch Body Pushbutton, Mushroom Non-Illuminated
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB5AC2 |
|---|---|
| Actuator Type | Mushroom, Pushbutton |
| Compatible Series | Harmony XB5, Schneider |
| Illumination | Non-Illuminated |
| Panel Cutout Dimension | 22 mm |
| Panel Cutout Shape | Round |
| Requires | Contact Block(s) |
| Type | Momentary |
