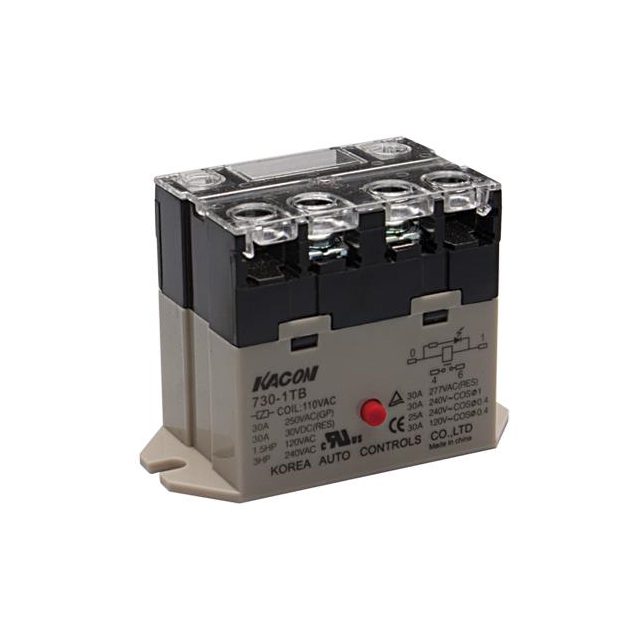

730-1TB-110VAC

Active

Kacon

RELAY GEN PURPOSE SPST 30A 110V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE SPST 30A 110V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.04

General part information

General Purpose Relay SPST-NO (1 Form A) 110VAC Coil Chassis Mount

Technical documentation and resources

Part	Coil Current	Contact Material	Coil Voltage	Relay Type	Termination Style	Contact Rating (Current)	Release Time	Mounting Type	Contact Form	Features	Operate Time	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]
Kacon 730-1TB-220VAC	11.8 mA	Silver Alloy	220 VAC/DC	General Purpose	Screw Terminal	30 A	30 ms	Chassis Mount	SPST-NO (1 Form A)	Test Button	30 ms	30 VDC, 277 VAC	-10 °C	60 °C
Kacon 730-1TB-110VAC	24.5 mA	Silver Alloy	110 VAC/DC	General Purpose	Screw Terminal	30 A	30 ms	Chassis Mount	SPST-NO (1 Form A)	Test Button	30 ms	30 VDC, 277 VAC	-10 °C	60 °C
